1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog

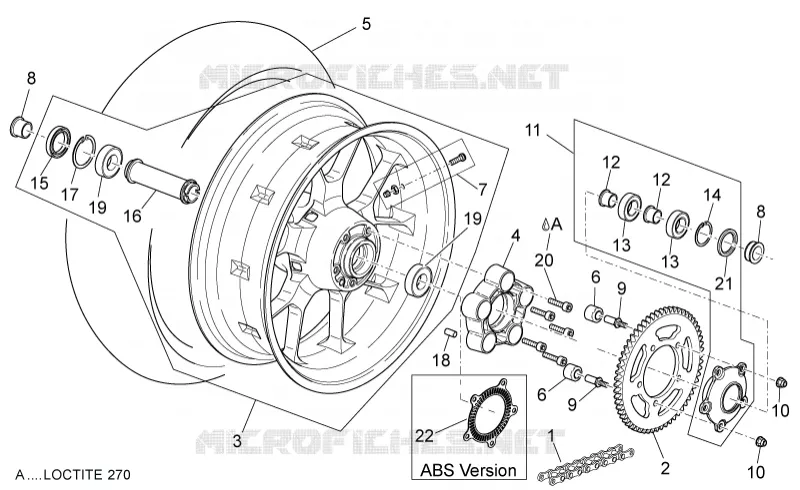

Rear wheel
6
Parts Diagram
Parts Catalog
Cylinder with piston
by
Throttle body
Rear wheel
1
2
3
4
4
5
6
6
7
8
8
9
9
10
10
11
12
12
13
13
14
15
16
17
18
19
19
20
21
22
1
Chain 525
856805
$144,56 Unit Price incl. VAT
2
Chain ring Z=46 AL
856803
Not Available
3
Rear wheel, black 6"x17"
860694
$219,66 Unit Price incl. VAT
4
Rear wheel spring drive holder
AP8128231
Not Available
5
Rear tyre
85157R
Not Available
6
Flexible coupling rubber
AP8125731
Not Available
7
Tubeless tyre valve
AP8101744
$6,30 Unit Price incl. VAT
8
Rear wheel spacer
AP8121592
$15,31 Unit Price incl. VAT
9
Pin
B045033
$20,46 Unit Price incl. VAT
10
Nut
564878
$2,99 Unit Price incl. VAT
11
Crown holder cpl.
AP8125730
Not Available
12
Spring drive spacer
AP8125732
$29,76 Unit Price incl. VAT
13
Bearing 30x55x13
AP8110081
$16,34 Unit Price incl. VAT
14
Inside circlip d55
AP8121212
$7,81 Unit Price incl. VAT
15
Gasket ring 38x52x7
AP8125786
$22,46 Unit Price incl. VAT
16
Internal spacer
AP8128170
$36,58 Unit Price incl. VAT
17
Circlip
AP8125788
$3,65 Unit Price incl. VAT
18
Pin 10x20
AP8150463
$3,65 Unit Price incl. VAT
19
Bearing 6205-2rs1 25x52x15
AP8106806
$20,52 Unit Price incl. VAT
20
Hex socket screw M10x30
AP8150195
$0,67 Unit Price incl. VAT
21
Gasket ring 38x55x7
AP8121213
$8,01 Unit Price incl. VAT
22
Phonic wheel ABS
890960
$18,18 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
