1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog

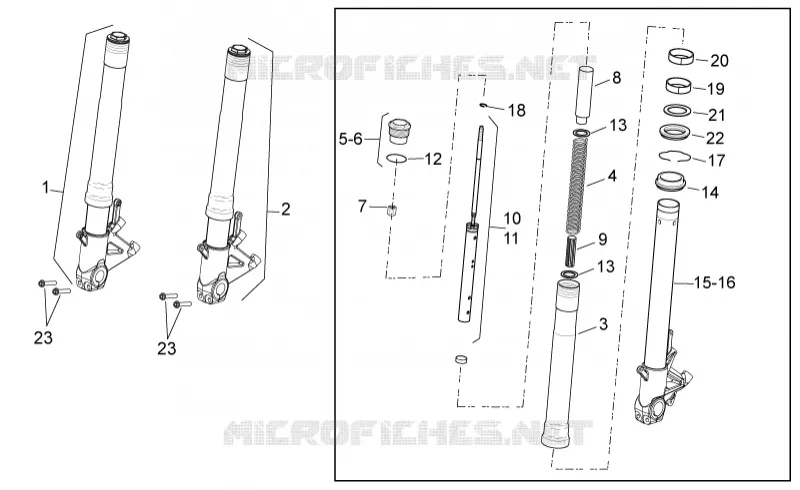

Front fork
6
Parts Diagram
Parts Catalog
Saddle support
by
Rear body II
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
23
1
RH hub cpl.
896007
Not Available
2
LH hub cpl.
896008
Not Available
3
Sleeve
897328
Not Available
4
Spring
897329
$46,43 Unit Price incl. VAT
5
LH sleeve plug
897330
$133,57 Unit Price incl. VAT
6
RH sleeve plug
897348
$118,60 Unit Price incl. VAT
7
Nut
897331
$15,24 Unit Price incl. VAT
8
Preload tube
897332
$13,28 Unit Price incl. VAT
9
Spring guide
897333
$15,24 Unit Price incl. VAT
10
LH plunger, complete
897334
Not Available
11
RH plunger, complete
897349
$227,11 Unit Price incl. VAT
12
O-ring
897335
$26,92 Unit Price incl. VAT
13
Washer
897336
$5,73 Unit Price incl. VAT
14
Dust cover
897337
$23,27 Unit Price incl. VAT
15
Hub+LH fork leg
897338
Not Available
16
Hub+RH fork leg
897350
Not Available
17
Circlip
897339
$45,71 Unit Price incl. VAT
18
Stop ring
897340
$6,41 Unit Price incl. VAT
19
Spring guide bush
897341
$17,06 Unit Price incl. VAT
20
Bush
897342
$20,45 Unit Price incl. VAT
21
Special washer
897343
$7,75 Unit Price incl. VAT
22
Oil seal
897344
$24,96 Unit Price incl. VAT
23
Screw w/ flange
AP8152283
$0,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
