1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog

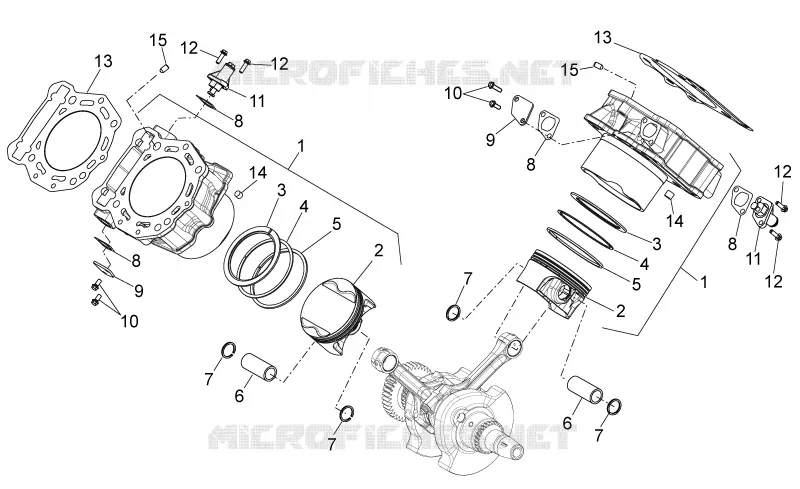

Cylinder with piston
6
Parts Diagram
Parts Catalog
Rear body II
by
Rear wheel
Cylinder with piston
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
8
8
9
9
10
10
11
11
12
12
12
12
13
13
14
14
15
15
1
Cylinder - Piston
848796
Not Available
1
Cylinder - Piston
B013758
$740,08 Unit Price incl. VAT
2
Piston catC 91,947-91,954
8482860003
$284,91 Unit Price incl. VAT
2
Piston catD 91,954-91,961
8482860004
$284,91 Unit Price incl. VAT
2
Piston catA 91,933-91,940
8482860001
Not Available
2
Piston catB 91,940-91,947
8482860002
$284,91 Unit Price incl. VAT
3
Ring
872655
$14,49 Unit Price incl. VAT
4
Oil scraper ring
872656
Not Available
5
Oil scraper ring
872657
$9,84 Unit Price incl. VAT
6
Piston pin
848798
$9,79 Unit Price incl. VAT
7
Stop ring
828116
$0,29 Unit Price incl. VAT
8
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
9
Plate
840135
$0,92 Unit Price incl. VAT
10
Screw w/ flange
872425
$0,09 Unit Price incl. VAT
11
Complete chain tensioner
82650R
$34,52 Unit Price incl. VAT
12
Screw w/ flange
872432
$0,09 Unit Price incl. VAT
13
Cylinder head gasket
871776
Not Available
14
Pin 11,8X10
825597
$0,94 Unit Price incl. VAT
15
Calibrated dowel
874589
$1,58 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
