1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog

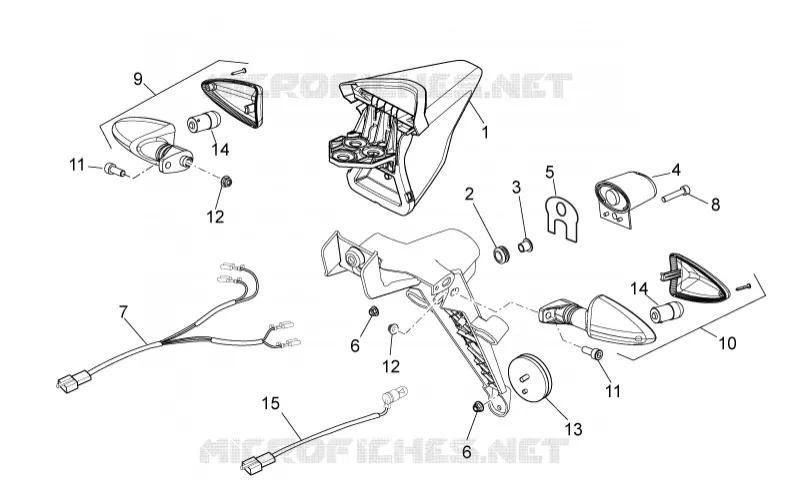

Rear lights
6
Parts Diagram
Parts Catalog
Lock hardware kit
by
Ignition unit
Rear lights
1
2
3
4
5
6
6
7
8
9
10
11
11
12
12
13
14
14
15
1
Taillight
856899
$119,64 Unit Price incl. VAT
2
Rubber spacer
AP8112600
$4,49 Unit Price incl. VAT
3
T bush
AP8121795
$3,38 Unit Price incl. VAT
4
Number-plate light
AP8127098
Not Available
5
Vibration-damping rubber
AP8117258
$5,38 Unit Price incl. VAT
6
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
7
Taillight wiring harn.
856843
$20,59 Unit Price incl. VAT
8
Hex socket screw M5x25
AP8150350
$3,65 Unit Price incl. VAT
9
LH front turn indicator
854556
$15,83 Unit Price incl. VAT
10
RH front turn indicator
854555
$15,83 Unit Price incl. VAT
11
Hex socket screw M6x16
AP8150137
$3,70 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
13
Rear reflector, red
AP8224164
$4,10 Unit Price incl. VAT
14
Lamp RY10W 12V
AP8127489
$6,35 Unit Price incl. VAT
15
Plate light wiring
860026
$4,87 Unit Price incl. VAT
16
Biadhesive
860447
$5,73 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
