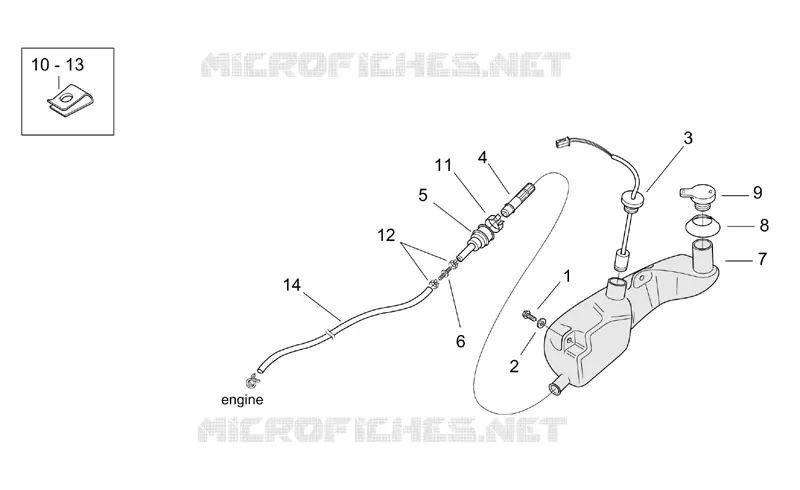

Oil tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
2
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
3
Oil reserve indicator
AP8124811
$11,06 Unit Price incl. VAT
4
Mixer oil filter
AP8102224
$4,62 Unit Price incl. VAT
5
Rubber spacer *
AP8102223
$4,62 Unit Price incl. VAT
6
2-way union
AP8101944
$0,76 Unit Price incl. VAT
7
Oil tank
AP8238433
$29,21 Unit Price incl. VAT
8
Oil seal
AP8220195
$5,38 Unit Price incl. VAT
9
Oil filler cap
AP8220421
$5,38 Unit Price incl. VAT
10
Clip M6
AP8102376
Not Available
11
Hose clip D23,5x8*
AP8101743
$5,38 Unit Price incl. VAT
12
Hose clip D8x5,5*
AP8101770
$5,38 Unit Price incl. VAT
13
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
14
pipe 5x9
AP8220402
$4,62 Unit Price incl. VAT
