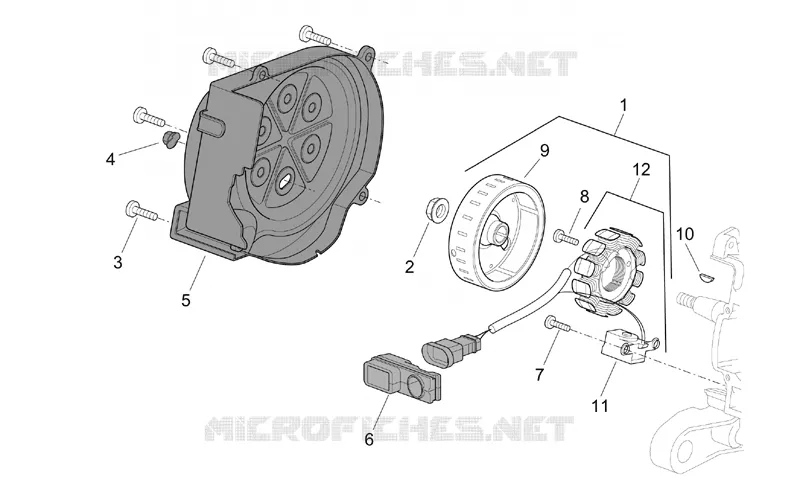

Flywheel
1
2
3
4
5
6
7
8
9
10
11
12
1
Flywheel cpl.
AP8515070
Not Available
1
Flywheel cpl.
AP8515103
Not Available
2
Flanged nut
AP8551017
Not Available
3
screw
AP8550169
Not Available
4
Cover
AP8515074
Not Available
5
Flywheel cover
AP8515094
Not Available
5
Flywheel cover
AP8515075
Not Available
6
Fairlead
AP8515076
Not Available
7
Hex socket screw
AP8550155
Not Available
7
TBIC screw
AP8550073
Not Available
8
TBIC screw
AP8515051
Not Available
9
Rotor cpl.
AP8515073
Not Available
9
Rotor cpl.
AP8515104
Not Available
10
Transmission key
AP8550039
Not Available
11
Ext. pick-up
AP8515071
Not Available
12
Stator cpl.
AP8515105
Not Available
12
Stator cpl.
AP8515072
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
