Drive shaft
1
1
2
3
4
5
6
7
8
9
1
Bearing 20x52x12
AP8110118
Not Available
1
Bearing 20x52x12
AP8515008
Not Available
2
Gasket ring
AP8515009
Not Available
3
Pin cage 3cat.SILVER
AP8515012
Not Available
3
Pin cage 4cat.GREEN
AP8515013
Not Available
3
Pin cage 1cat.COPPER
AP8515010
Not Available
3
Pin cage 2cat.BLUE
AP8515011
Not Available
4
Crankshaft cpl.
AP8515098
Not Available
4
Crankshaft cpl.
AP8515014
Not Available
5
Gasket ring
AP8515015
Not Available
6
Hose clamp
AP8515041
Not Available
7
screw
AP8550169
Not Available
8
Compressor
AP8515016
Not Available
9
O-ring
AP8515048
Not Available

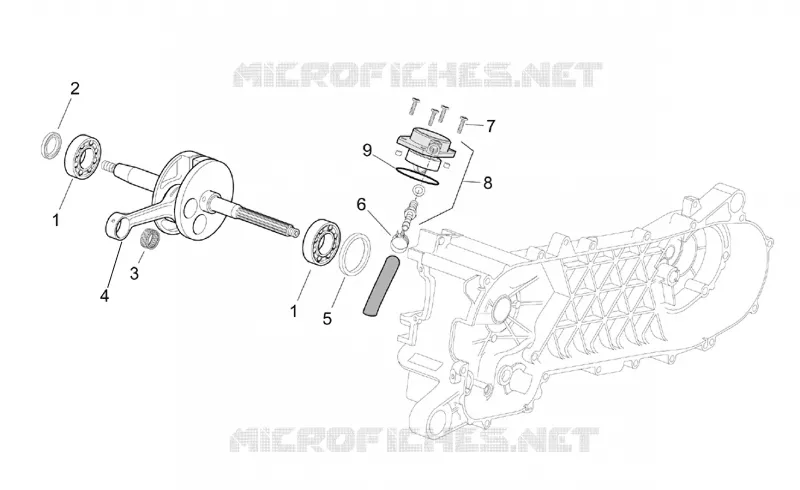

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
