Engine displacement
50
2
Model
SR
3
Year
2011
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Cylinder head/Carburettor
6

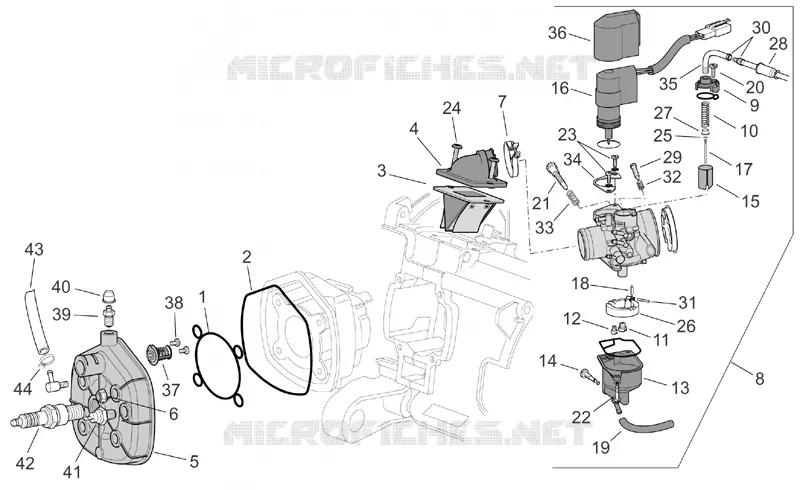

Parts Diagram
Parts Catalog
Acc. - Top/cases, side cases
by
Central stand - Connecting rod
Cylinder head/Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
Inner gasket head
AP8515030
Not Available
2
Outer gasket head
AP8515031
Not Available
3
Reed valve assy
AP8515117
Not Available
4
Intake manifold
AP8515116
Not Available
5
Cylinder head
AP8515097
Not Available
6
Nut M6
AP8550271
Not Available
7
Hose clamp
AP8550178
Not Available
8
Carburettor cpl.
AP8515128
Not Available
9
Gas valve cover
AP8515129
Not Available
10
Gas valve spring
AP8515130
Not Available
11
Main jet 53
AP8515131
Not Available
11
Main jet 60
AP8222443
Not Available
12
Idle jet 32
AP8515132
Not Available
13
Float chamber cpl.
AP8515133
Not Available
14
Float chamber unload screw
AP8550232
Not Available
15
Gas valve
AP8515134
Not Available
16
Starter
AP8515135
Not Available
17
Conical pin
AP8515136
Not Available
18
Fuel closing needle
AP8550236
Not Available
19
Float chamber dump pipe L=130
AP8550215
Not Available
20
screw
AP8515137
Not Available
21
Gas valve adjuster screw
AP8515138
Not Available
22
Float chamber fixing screw
AP8550238
Not Available
23
screw
AP8550209
Not Available
24
Antitampering screw
AP8276035
Not Available
25
Ring
AP8515139
Not Available
26
Float cpl.
AP8515140
Not Available
27
Conical pin clip
AP8515141
Not Available
28
Throttle cable cap
AP8550214
Not Available
29
Air adjuster screw
AP8515142
Not Available
30
Wire tensioner screw
AP8550220
Not Available
31
Float pin
AP8550235
Not Available
32
Adj.min.eng.spd air scr.spring
AP8550231
Not Available
33
Gas valve adj.screw spring
AP8550227
Not Available
34
Plate
AP8550208
Not Available
35
Pipe
AP8550221
Not Available
36
Starter cover
AP8550212
Not Available
37
Thermostat 60°
AP8515037
Not Available
38
Self-tapping screw
AP8515096
Not Available
39
Bleed valve
AP8560015
Not Available
40
Cap
AP8560010
Not Available
41
Thermistor
AP8577025
Not Available
42
Spark plug Champion RN1C
AP8515106
Not Available
43
Head-carb.by-pass pipe
AP8515100
Not Available
44
Hose clamp
AP8515050
Not Available
