Engine displacement
50
2
Model
SR
3
Year
1998
4
Trim
SR H2O
5
Parts Catalog
Clutch II
6
Parts Diagram
Parts Catalog
Clutch I
by
Transmission final drive
Clutch II
1
2
3
4
5
6
7
8
9
1
Sec. sheave spring
AP8206729
Not Available
2
Brake shoes return spring
AP8206730
Not Available
2
Res.rap.sabots emb.
AP8206762
$8,65 Unit Price incl. VAT
3
Embrayage centrifuge complet
AP8206763
$157,21 Unit Price incl. VAT
3
Centrifugal clutch assy
AP8206731
Not Available
4
Nut M28x1
AP8206732
Not Available
5
Clutch housing, complete
AP8206733
Not Available
6
Nut M10x1 H=8
AP8206186
Not Available
7
Rondelle élastique
AP8502471
$3,65 Unit Price incl. VAT
8
Speed variator w/ clutch
AP8206761
Not Available
8
Speed variator w/ clutch
AP8206748
Not Available
9
Brake shoes rubber D4x11
AP8206734
Not Available

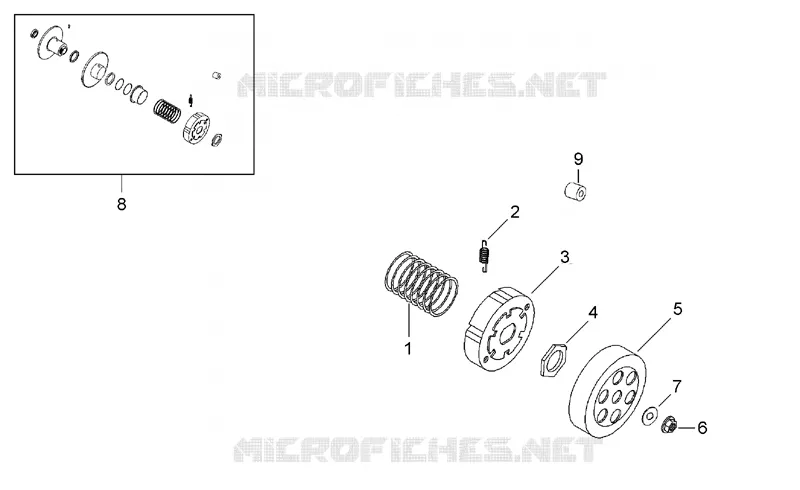

Find the detailed Clutch II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
