Engine displacement
50
2
Model
SR
3
Year
1998
4
Trim
SR H2O
5
Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Carburettor I
by
Flywheel - Water pump
Carburettor II
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Gasket envelope
AP8206886
Not Available
2
Float kit
AP8206890
Not Available
3
Needle valve GA211
AP8206797
$5,53 Unit Price incl. VAT
3
Needle valve GA209
AP8206707
Not Available
3
Gicleur
AP8206796
$6,38 Unit Price incl. VAT
4
Main jet 74
AP8222684
Not Available
4
Main jet 72
AP8222288
Not Available
4
Jet maximum
AP8222682
$5,53 Unit Price incl. VAT
4
Main jet 68
AP8206901
Not Available
4
Main jet 78
AP8222275
Not Available
4
Main jet 70
AP8222479
Not Available
5
Idle jet 32
AP8206902
Not Available
5
Idle jet 38
AP8206795
$5,38 Unit Price incl. VAT
5
Idle jet 34
AP8222685
Not Available
6
Starter jet 45
AP8206903
Not Available
6
Jet démarrage
AP8206904
$6,38 Unit Price incl. VAT
7
Float chamber
AP8206889
Not Available
8
Float chamber fixing screw
AP8206887
Not Available
9
Adj.min.eng.spd air scr.spring
AP8206894
Not Available
10
Adj.min.eng.speed air screw
AP8206708
Not Available
10
Adj.min.eng.speed air screw
AP8206907
Not Available
11
Gas valve adj.screw
AP8206895
Not Available
12
Gas valve adj.screw spring
AP8206896
Not Available
13
Flat washer
AP8206897
Not Available

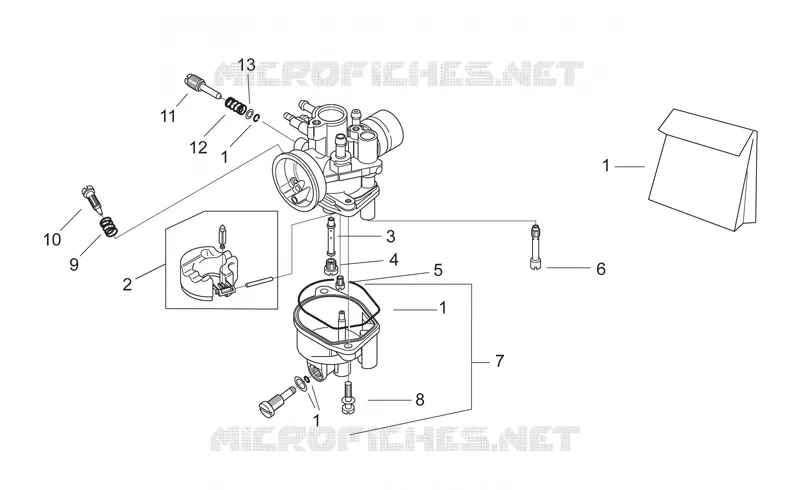

Find the detailed Carburettor II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
