Engine displacement
50
2
Model
SR
3
Year
1998
4
Trim
SR H2O
5
Parts Catalog
Central body II
6
Parts Diagram
Parts Catalog
Central body I
by
Saddle unit I
Central body II
1
2
3
1
Underpanel, m.grey+dec.
AP8248844
Not Available
1
Underpanel, green+decal
AP8239396
Not Available
1
Underpanel, silv.grey+dec.
AP8248463
Not Available
1
Underpanel, yellow w/ decal
AP8239087
Not Available
1
Underpanel, grey+decal
AP8239077
Not Available
1
Underpanel, fluo red+decal
AP8249310
Not Available
1
Underpanel, yellow+dec.
AP8258089
Not Available
1
Underpanel, fluo red+decal
AP8248674
$192,74 Unit Price incl. VAT
1
Underpanel, black+decal
AP8239407
Not Available
1
Underpanel, fluo red+decal
AP8249112
Not Available
1
Underpanel, grey+decal
AP8239901
Not Available
1
Underpanel, black+decal
AP8239717
Not Available
1
Underpanel, s.grey+decal
AP8248462
Not Available
1
Underpanel, silv.grey+dec.
AP8248747
Not Available
1
Underpanel, red+decal
AP8239726
Not Available
1
Underpanel, silv.grey+dec.
AP8248834
Not Available
2
Sump guard, fluo red
AP8248675
Not Available
2
Sump guard, blade grey
AP8239941
Not Available
2
Sump guard, silver grey
AP8249115
Not Available
2
Sump guard, silver grey
AP8248748
Not Available
2
Sump guard, black
AP8239408
Not Available
2
Sump guard, grey
AP8239069
Not Available
2
Sump guard, mineral grey
AP8248845
Not Available
2
Sump guard, fluo red
AP8249114
Not Available
2
Sump guard, yellow
AP8258090
$31,21 Unit Price incl. VAT
2
Sump guard, yellow
AP8239079
Not Available
2
Sump guard, red
AP8239727
Not Available
2
Sump guard, green
AP8239397
Not Available
3
Floor panel, met.black
AP8248658
Not Available
3
Floor panel, grey
AP8238363
Not Available
3
Floor panel, black
AP8249892
Not Available

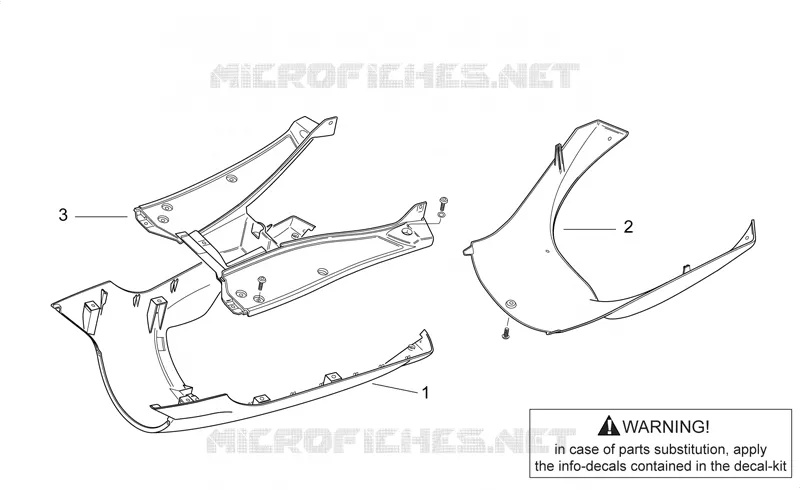

Find the detailed Central body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
