Parts Catalog
Carburettor I
6
Parts Diagram
Parts Catalog
Supply - Oil pump
by
Carburettor II
Carburettor I
1
2
3
3
4
5
6
7
8
9
10
1
Soupape gaz
AP8206899
$25,10 Unit Price incl. VAT
1
Gas valve 30
AP8206898
Not Available
2
Conical pin A12
AP8206900
Not Available
3
Gasket envelope
AP8206886
Not Available
4
Mixture chamber cover kit
AP8206909
Not Available
4
Mixture chamber cover kit
AP8206906
Not Available
5
Valve gas return spring
AP8206908
$4,82 Unit Price incl. VAT
6
Conical pin clip
AP8206891
Not Available
7
Conical pin clip
AP8206892
Not Available
8
Wire starter kit
AP8206893
Not Available
9
Carburettor phbn 12-Gs
AP8206685
Not Available
9
Carburettor phbn 12-Gs
AP8206728
Not Available
9
Carburettor phbn 12-Gs
AP8206790
Not Available
9
Carburettor phbn 12-Gs
AP8206905
Not Available
9
Carburettor phbn 12-Gs
AP8206752
Not Available
9
Carburettor phbn 12-Gs
AP8206725
Not Available
9
Carburettor PHBN 12-GS
AP8206882
Not Available
10
pipe
AP8220507
$6,30 Unit Price incl. VAT

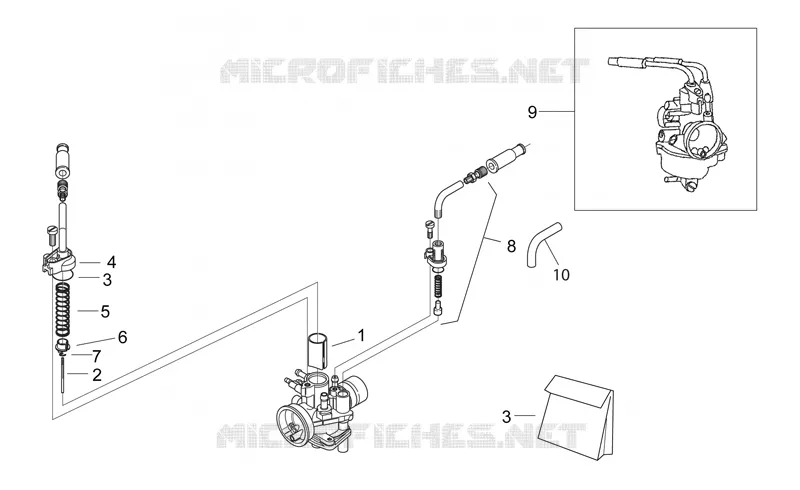

Find the detailed Carburettor I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
