1
Engine displacement
50
2
Model
TUONO
3
Year
2004
4
Trim
RS 50 Tuono
5
Parts Catalog
Rear footrests
6

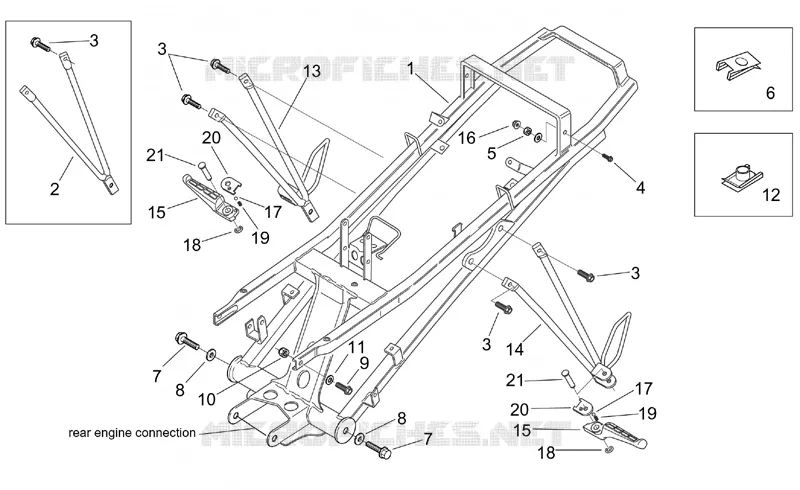

Parts Diagram
Parts Catalog
Front footrests
by
Front fork I
Rear footrests
1
2
3
3
3
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
15
16
17
17
18
18
19
19
20
20
21
21
1
Saddle support, cat.
AP8235008
Not Available
2
Silencer supp. plate
AP8146728
$21,37 Unit Price incl. VAT
3
Screw w/ flange M8x20
AP8152286
$0,25 Unit Price incl. VAT
4
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
5
Serpress nut
AP8150333
$3,65 Unit Price incl. VAT
6
Clip M6
AP8102376
Not Available
7
Screw w/ flange M10x35
AP8152318
$4,36 Unit Price incl. VAT
8
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
9
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
10
Low self-locking nut M8
AP8150032
Not Available
11
Washer 6,4x12*
AP8152184
$3,65 Unit Price incl. VAT
12
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
13
RH footrest support
AP8235052
Not Available
14
LH footrest support
AP8235054
Not Available
15
Rear footrests, pair
AP8235058
Not Available
16
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
17
Ball D6,35
AP8101861
$0,10 Unit Price incl. VAT
18
Stop ring
AP8152409
$3,65 Unit Price incl. VAT
19
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
20
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
21
Footrest pin
AP8134829
$1,35 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
