1
Engine displacement
50
2
Model
TUONO
3
Year
2004
4
Trim
RS 50 Tuono
5
Parts Catalog

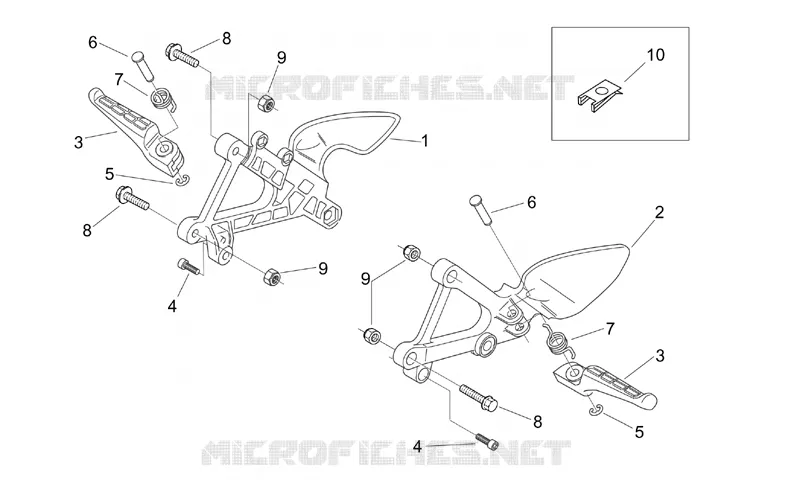

Front footrests
6
Parts Diagram
Parts Catalog
Central stand
by
Rear footrests
Front footrests
1
2
3
3
4
4
5
5
6
6
7
7
8
8
8
9
9
9
10
1
RH front footrest bracket
AP8234182
$84,54 Unit Price incl. VAT
2
LH front footrest bracket
AP8234183
$84,54 Unit Price incl. VAT
3
Front footrest, pair
AP8235057
Not Available
4
Hex socket screw M6x16
AP8150137
$3,70 Unit Price incl. VAT
5
Stop ring
AP8152409
$3,65 Unit Price incl. VAT
6
Footrest pin
AP8121566
$5,38 Unit Price incl. VAT
7
Footrest return spring
AP8221277
$0,92 Unit Price incl. VAT
8
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
9
Low nut M8
AP8150431
$0,34 Unit Price incl. VAT
10
Clip M6
AP8102376
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
