1
Engine displacement
50
2
Model
TUONO
3
Year
2004
4
Trim
RS 50 Tuono
5
Parts Catalog
Fuel tank
6

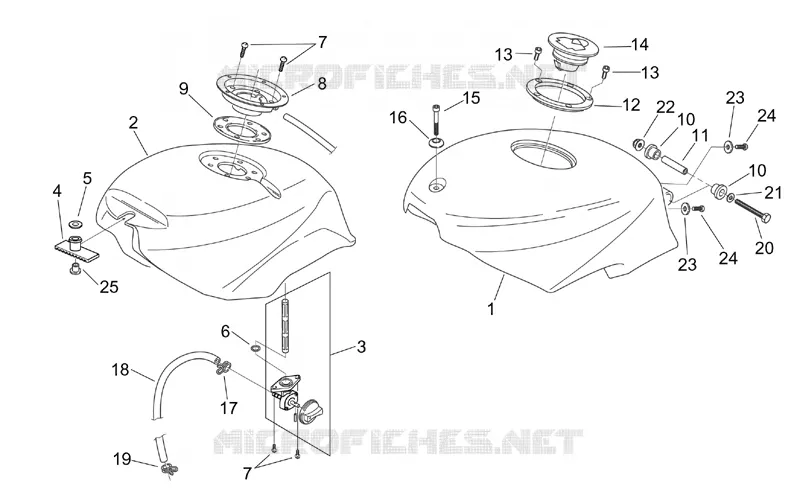

Parts Diagram
Parts Catalog
Front body II
by
Saddle unit
Fuel tank
1
2
3
4
5
6
7
7
8
9
10
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
1
Fuel tank cover, black
AP8268181
Not Available
1
Fuel tank cover, black
AP8258919
Not Available
1
Fuel tank cover, red
AP8258999
Not Available
2
Fuel tank
AP8239466
Not Available
3
Fuel cock
AP8202129
Not Available
4
Tank rubber
AP8120557
$6,70 Unit Price incl. VAT
5
T bush *
AP8121114
$3,65 Unit Price incl. VAT
6
O-ring
AP8120798
Not Available
7
Hex socket screw M6x12
AP8152186
$0,16 Unit Price incl. VAT
8
Filler cap
AP8121784
$15,31 Unit Price incl. VAT
9
Filler cap gasket
AP8120702
$5,38 Unit Price incl. VAT
10
Rubber spacer *
AP8120709
$5,38 Unit Price incl. VAT
11
Rear spacer
AP8152153
Not Available
12
Ring nut fuel filler cap
AP8102361
Not Available
13
Hex socket screw M4x10
AP8152043
$0,15 Unit Price incl. VAT
14
Fuel filler cap
AP8202380
Not Available
15
Hex socket screw M6x50
AP8150202
$3,65 Unit Price incl. VAT
16
Washer 6,5x12,5*
AP8121819
$5,38 Unit Price incl. VAT
17
Hose clamp D 11,9
AP8201358
$0,34 Unit Price incl. VAT
18
Fuel pipe 5,5x10
AP8120952
Not Available
19
Hose clamp D9,1*
AP8102377
$3,65 Unit Price incl. VAT
20
Screw
AP8150314
$3,65 Unit Price incl. VAT
21
Spring washer 6,4x11x0,5*
AP8150429
Not Available
22
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
23
Washer 6,4x12,5*
AP8150178
$0,34 Unit Price incl. VAT
24
Hex socket screw
AP8152108
$0,16 Unit Price incl. VAT
25
T bush *
AP8121673
$5,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
