1
Engine displacement
50
2
Model
TUONO
3
Year
2004
4
Trim
RS 50 Tuono
5
Parts Catalog

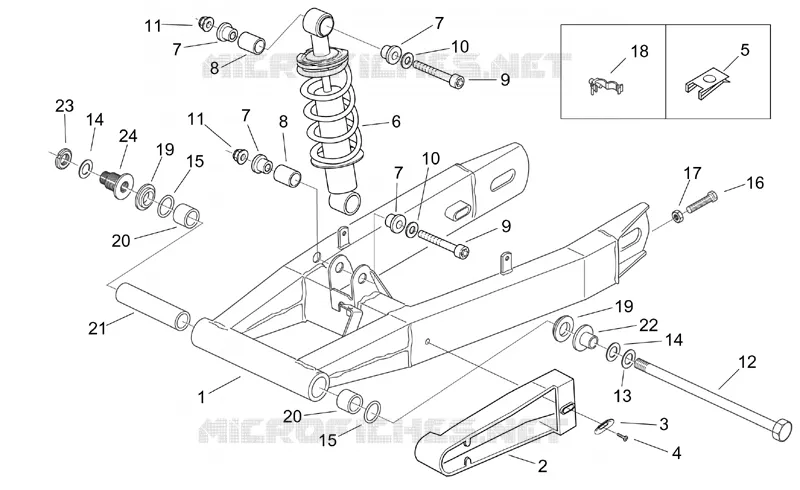

Swing arm - Shock absorber
6
Parts Diagram
Parts Catalog
Front fork II
by
Front body I
Swing arm - Shock absorber
1
2
3
4
5
6
7
7
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
16
17
18
19
19
20
20
21
22
23
24
1
Swing arm, black
AP8235146
Not Available
2
Chain guide plate
AP8220499
Not Available
3
Cup for shoe
AP8234020
$2,74 Unit Price incl. VAT
4
Screw
AP8150246
$3,65 Unit Price incl. VAT
5
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
6
Shock absorber
AP8203818
Not Available
7
T bush
AP8203948
$3,65 Unit Price incl. VAT
8
Silent-block
AP8203826
$5,38 Unit Price incl. VAT
9
screw M10x60
AP8150049
$3,70 Unit Price incl. VAT
10
Washer 10,5X18X2*
AP8152176
$3,65 Unit Price incl. VAT
11
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
12
Rear swing arm pin
AP8225332
Not Available
13
Curved spring washer *
AP8150297
Not Available
14
Washer 17x30x3*
AP8152063
$3,65 Unit Price incl. VAT
15
O-ring
AP8220198
$3,65 Unit Price incl. VAT
16
Chain tens.adjuster screw
AP8152305
$3,65 Unit Price incl. VAT
17
Low nut
AP8152262
Not Available
18
Cable-guide
AP8134186
$5,38 Unit Price incl. VAT
19
Bush
AP8220196
Not Available
20
Bush
AP8220197
Not Available
21
Spacer
AP8221024
Not Available
22
Bush 18 mm
AP8121150
Not Available
23
Ring nut M17x1
AP8150299
Not Available
24
Adjustment bush
AP8221278
$9,41 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
