1
Engine displacement
125
2
Model
MX
3
Year
2005
4
Trim
MX SuperMotard
5
Parts Catalog

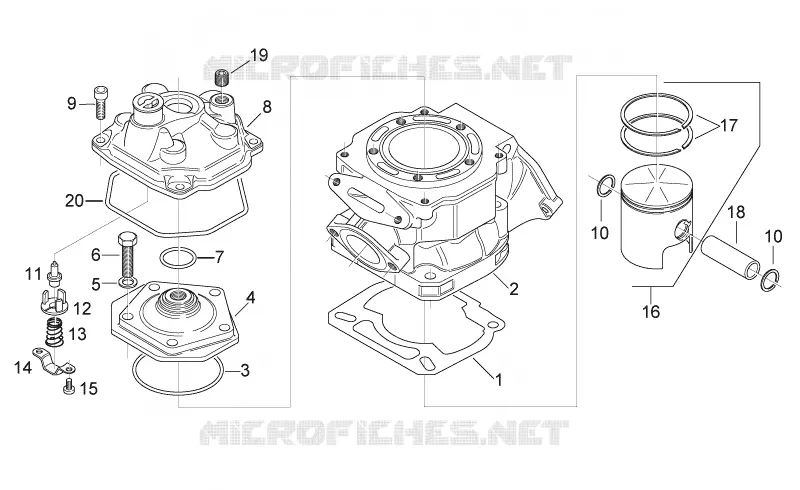

Cylinder - Head - Piston
6
Parts Diagram
Parts Catalog
Crankshaft - Balance shaft
by
Carburettor flange
Cylinder - Head - Piston
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
Gasket 0,5
AP0650096
$7,23 Unit Price incl. VAT
1
Gasket 0,3
AP0650095
$11,77 Unit Price incl. VAT
1
Gasket 0,8
AP0650097
$19,71 Unit Price incl. VAT
2
Cylinder 9 holes
AP0223618
Not Available
3
O-ring 64x2
AP0250160
$3,65 Unit Price incl. VAT
4
Cylinder head
AP0223385
Not Available
5
Break washer A8
AP0945752
Not Available
6
Round screw M8x30
AP0940487
Not Available
7
O-ring 23,3x2,4
AP0430782
$5,90 Unit Price incl. VAT
8
Cylinder head cover
AP0613100
Not Available
9
Hex socket screw M6x20
AP0241930
$3,65 Unit Price incl. VAT
10
Stop ring D15
AP0945635
$5,38 Unit Price incl. VAT
11
Thermostat 70°
AP0222122
Not Available
12
Thermostat holder
AP0222175
$10,35 Unit Price incl. VAT
13
Spring
AP0239950
Not Available
14
Thermostat bow
AP0222202
Not Available
15
Special cap screw M4x8
AP0240195
$3,65 Unit Price incl. VAT
16
Piston assy 54,01 mm
AP0294754
Not Available
16
Piston assy 53,98 mm
AP0294744
$275,99 Unit Price incl. VAT
16
Piston assy 53,99 mm
AP0294745
Not Available
16
Piston assy 54,00 mm
AP0294753
Not Available
17
Ring d54
AP0215672
$32,18 Unit Price incl. VAT
18
Piston pin
AP0216139
Not Available
19
Plug screw 1/8-27NPT
AP0240480
Not Available
20
O-ring 105x2,5
AP0250280
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
