1
Engine displacement
125
2
Model
MX
3
Year
2005
4
Trim
MX SuperMotard
5
Parts Catalog

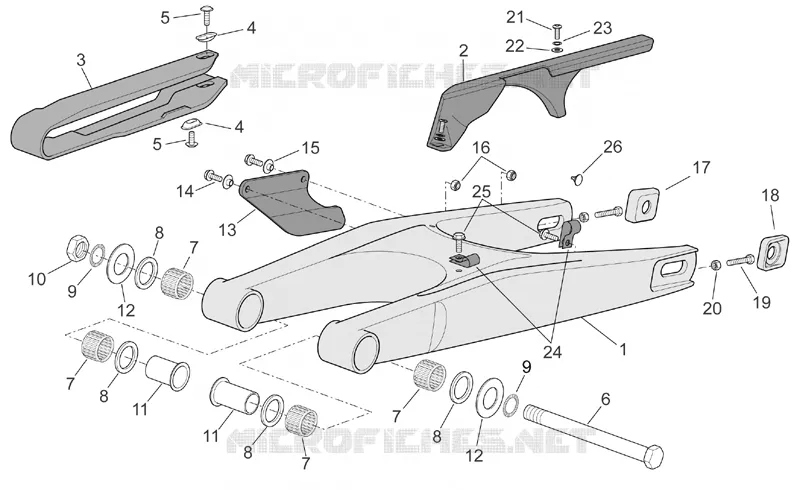

Swing arm
6
Parts Diagram
Parts Catalog
Front fork II
by
Rear shock absorber
Swing arm
1
2
3
4
4
5
5
6
7
7
7
7
8
8
8
8
9
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Swing arm
AP8135848
Not Available
2
Chain guard
AP8178224
Not Available
3
Chain guide plate
AP8120871
Not Available
4
Cup for shoe
AP8234020
$2,74 Unit Price incl. VAT
5
Hex socket screw
AP8152174
$3,65 Unit Price incl. VAT
6
Rear swing arm pin
AP8105132
Not Available
7
Roller cage 22x28x16
AP8110067
$9,32 Unit Price incl. VAT
8
Gasket ring
AP8120240
$3,65 Unit Price incl. VAT
9
Washer D15x22x1
AP8152103
$0,22 Unit Price incl. VAT
10
Low nut M14x1,5*
AP8152007
$0,33 Unit Price incl. VAT
11
Rear sw.arm piv.bush
AP8121121
Not Available
12
Clearance washer
AP8101341
Not Available
13
R. chain guide plate, grey
AP8120700
Not Available
14
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
15
T bush *
AP8121035
$3,65 Unit Price incl. VAT
16
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
17
RH chain tensioner
AP8135243
$4,00 Unit Price incl. VAT
18
LH chain tensioner
AP8135242
Not Available
19
Chain tens.adjuster screw
AP8152305
$3,65 Unit Price incl. VAT
20
Low nut
AP8152262
Not Available
21
Hex socket screw
AP8152108
$0,16 Unit Price incl. VAT
22
Washer 6,4x15x1
AP8152181
$0,07 Unit Price incl. VAT
23
Curved spring washer *
AP8150182
$0,08 Unit Price incl. VAT
24
Black hose D12*
AP8102151
Not Available
25
Screw w/ flange M5x12
AP8152272
$0,08 Unit Price incl. VAT
26
Rubber spacer
AP8120001
$0,77 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
