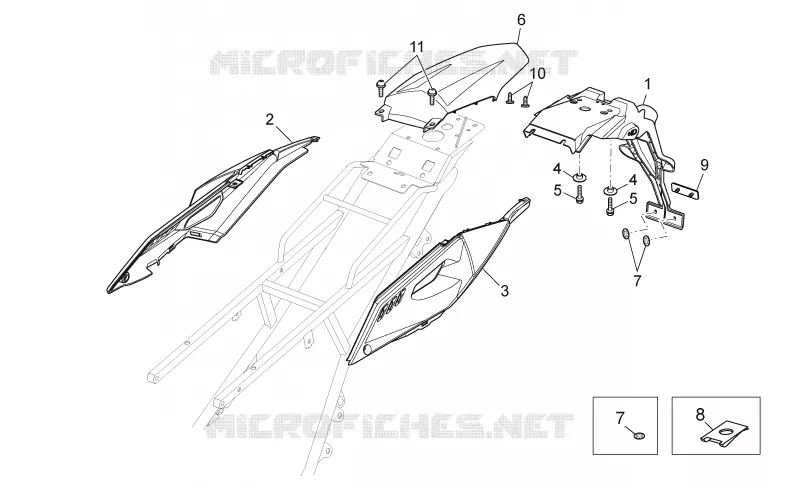

Rear body FOR RX-SX FROM 2009

Rear body

1

Number plate holder

856756

$18,51 Unit Price incl. VAT

2

RH rear fairing, black

85676200XN4

Not Available

2

RH rear fairing, white

85676200XB2

Not Available

3

LH rear fairing, black

85676300XN4

$14,73 Unit Price incl. VAT

3

LH rear fairing, white

85676300XB2

Not Available

4

T bush *

AP8121035

$3,65 Unit Price incl. VAT

5

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

6

Rear fairing

86061400XB2

Not Available

6

Rear fairing

86061400XN4

Not Available

7

Washer for shafts D5

AP8150450

$0,25 Unit Price incl. VAT

8

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

9

Rear reflector

AP8112202

Not Available

10

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

11

Screw w/ flange M5x9

AP8152339

$3,65 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
