Front body I FOR RX-SX FROM 2009

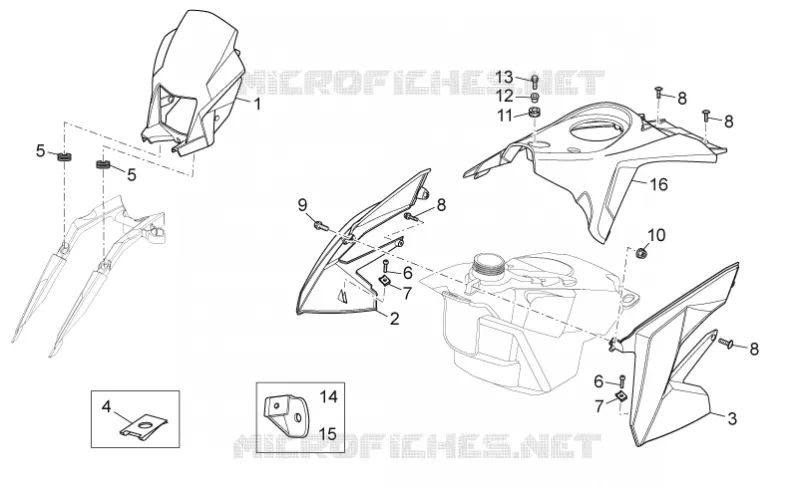

Front body I

1

Headlight support, black

85504700XN4

$21,52 Unit Price incl. VAT

1

Headlight support, white

85504700XB2

Not Available

2

RH air duct, black

86061500XN4

Not Available

3

LH air duct, black

86061600XN4

$45,23 Unit Price incl. VAT

4

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

5

Rubber spacer

AP8120405

$5,38 Unit Price incl. VAT

6

Hex socket screw M4x16

AP8150493

$3,65 Unit Price incl. VAT

7

Clip M4

AP8102381

$1,09 Unit Price incl. VAT

8

Screw w/ flange M5x9

AP8152339

$3,65 Unit Price incl. VAT

9

Screw w/ flange M5x25

AP8152275

Not Available

10

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

11

Rubber spacer

AP8120030

$0,85 Unit Price incl. VAT

12

Bush

AP8121032

$0,59 Unit Price incl. VAT

13

Screw w/ flange M6x30

AP8152281

$1,70 Unit Price incl. VAT

14

LH clamp

860582

Not Available

15

RH clamp

860583

Not Available

16

Fuel tank cover

856751

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
