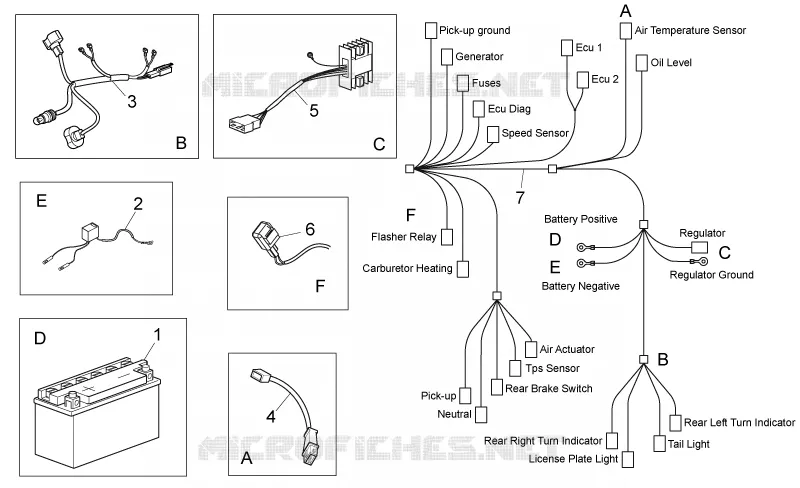

Electrical system II
1
2
3
4
5
6
7
1
Battery 12V-4Ah
AP8212110
Not Available
2
Battery negative leads
AP8112458
$6,15 Unit Price incl. VAT
3
Plate light wiring
AP8127660
$5,36 Unit Price incl. VAT
4
Temp. Sensor
AP8127916
Not Available
5
Voltage regulator
AP8112906
Not Available
6
Flasher unit
AP8127847
Not Available
7
Main wiring harness
856742
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
