1
Engine displacement
125
2
Model
RX-SX
3
Year
2009
4
Trim
RX-SX
5
Parts Catalog

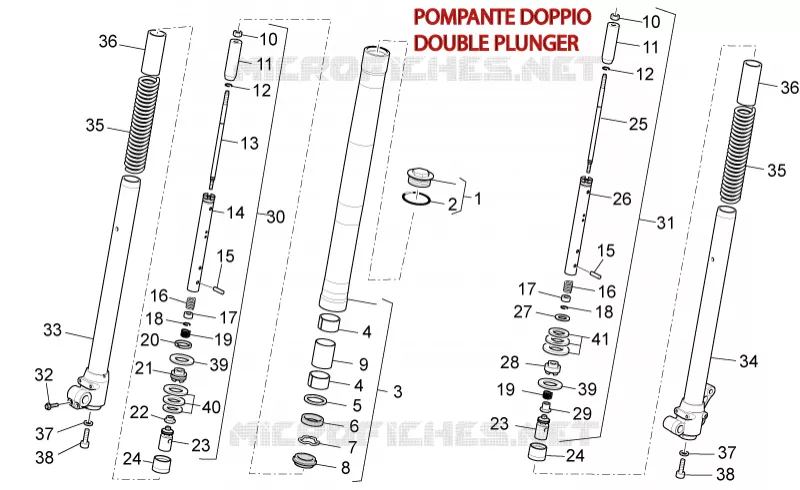

Front fork II
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Exhaust pipe
Front fork II
1
2
3
4
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
15
16
16
17
17
18
18
19
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
37
38
38
39
39
40
41
1
Plug cpl. D40
AP8163383
$37,78 Unit Price incl. VAT
2
O-ring
AP8123346
$3,65 Unit Price incl. VAT
3
Sleeve cpl. D40
AP8163386
Not Available
4
Bush
AP8123689
Not Available
5
Cup (Marzocchi)
599504
$1,92 Unit Price incl. VAT
6
Gasket ring (Marzocchi)
599501
$9,40 Unit Price incl. VAT
7
Stop ring (Marzocchi)
599503
Not Available
8
Dust cover + spring (Marzocchi)
599502
$8,58 Unit Price incl. VAT
9
Spacer
AP8123355
Not Available
10
Nut 8MA
AP8163387
Not Available
11
Spring guide
AP8163388
Not Available
12
Stop ring
AP8163389
Not Available
13
RH shock absorber
AP8163390
Not Available
14
RH plunger
AP8163391
Not Available
15
Pin 8x30
AP8163358
Not Available
16
Spring
AP8163392
Not Available
17
Cup
AP8163393
Not Available
18
Ring
AP8163394
Not Available
19
Spring
AP8163340
Not Available
20
Piston ring d.26
AP8163353
$24,90 Unit Price incl. VAT
21
Piston D26
AP8163395
Not Available
22
Nut M6x1 h.6
AP8163350
Not Available
23
Valve D40
AP8163396
Not Available
24
Bush
AP8163397
Not Available
25
LH shock absorber
AP8163398
Not Available
26
LH plunger
AP8163399
Not Available
27
Cup
AP8163360
Not Available
28
LH piston compression d.26
AP8163356
$11,77 Unit Price incl. VAT
29
Nut M6 H.11 fe ch.12
AP8163352
Not Available
30
RH plunger, complete
AP8163400
Not Available
31
LH plunger, complete
AP8163401
Not Available
32
Screw w/ flange
AP8123540
Not Available
33
Hub+RH fork leg
AP8163402
Not Available
34
Hub+LH fork leg
890405
$281,05 Unit Price incl. VAT
35
Spring
AP8163404
$33,95 Unit Price incl. VAT
36
Preload tube 35x5x10
890406
$1,77 Unit Price incl. VAT
37
Seal washer
AP8123206
$8,01 Unit Price incl. VAT
38
Screw M10x45
AP8163405
Not Available
39
Spacer 23x8,1x0,3
AP8163345
Not Available
40
Spacer 23x8.1x0.1
AP8163406
Not Available
40
Spacer 17x8.1x0.15
AP8163407
Not Available
41
Spacer 21x8,1x0,2
AP8163346
Not Available
41
Spacer 23x8,1x0,2
AP8163342
Not Available
41
Spacer 18x8.1x0.2
AP8163408
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
