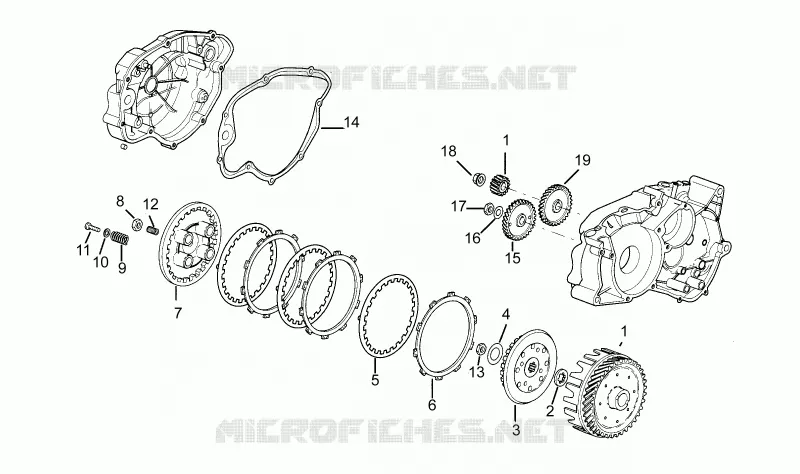

Clutch FOR RX 3 - 5 MARCE FROM 1991

Clutch

1

Clutch - pair Z=20/71

AP8206310

Not Available

2

Spacer D13x30x4

AP8206267

$18,12 Unit Price incl. VAT

3

Aluminium clutch drum

AP8206256

Not Available

4

Washer D12

AP8206271

$5,20 Unit Price incl. VAT

5

Driven clutch disc

AP8206247

$18,14 Unit Price incl. VAT

6

Driving clutch disc

AP8206322

Not Available

7

Clutch pressure plate

AP8206248

Not Available

8

Nut M14x1,25x6

AP8502432

Not Available

9

Clutch spring

AP8206258

Not Available

10

Washer D5x15x2

AP8206272

Not Available

11

Screw

AP8206279

Not Available

12

Adjuster screw M14x1,25

AP8502533

$5,90 Unit Price incl. VAT

13

Nut M12x1,25x7

AP8206265

$4,36 Unit Price incl. VAT

14

Cover gasket

AP8206287

$15,74 Unit Price incl. VAT

15

Balance shaft driven gear Z=34

AP8206253

Not Available

16

Blue steel washer D12,3x22

AP8206344

$3,65 Unit Price incl. VAT

17

Nut M12x1 H=5

AP8206266

$3,65 Unit Price incl. VAT

18

Flanged nut M12x1,25

AP8206343

$10,95 Unit Price incl. VAT

19

Balance shaft driv. Gear Z=34

AP8206308

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
