Swing arm FOR RX 3 - 5 MARCE FROM 1991

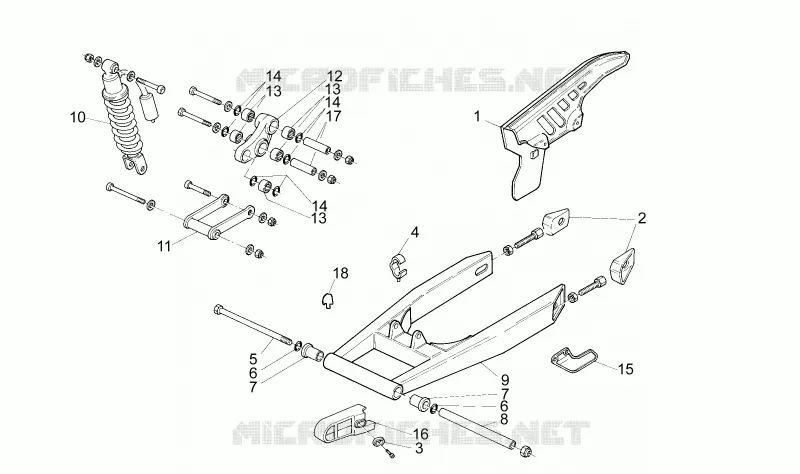

Swing arm

1

Chain guard

AP8230668

$4,43 Unit Price incl. VAT

2

Chain tens. plate

AP8232512

Not Available

3

Cup for shoe

AP8234020

$2,74 Unit Price incl. VAT

4

Cable-guide

AP8134186

$5,38 Unit Price incl. VAT

5

Rear swing arm pin+nut

AP8225070

Not Available

6

O-ring

AP8220198

$3,65 Unit Price incl. VAT

7

Bush

AP8220196

Not Available

7

Bushing

AP8221008

Not Available

8

Spacer

AP8221103

Not Available

9

Swing arm, grey

AP8232682

Not Available

10

Rear shock absorber

AP8203386

Not Available

11

Single conrod, black

AP8232498

Not Available

12

Double conrod

AP8232497

Not Available

13

Roller cage

AP8110063

$8,16 Unit Price incl. VAT

14

Gasket ring

AP8120809

Not Available

15

Chain plate

AP8230440

$1,70 Unit Price incl. VAT

16

Chain guide plate

AP8220259

Not Available

17

Piston pin L=26

AP8121771

Not Available

18

Rubber spacer

AP8220219

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
