1
Engine displacement
50
2
Model
RX
3
Year
1991
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog

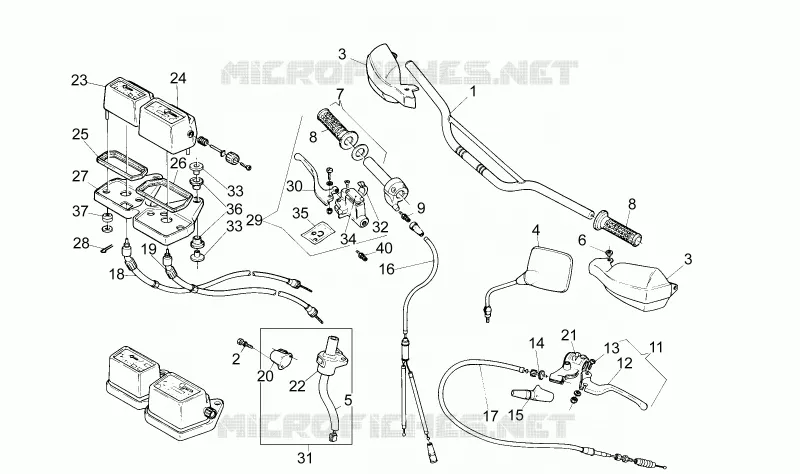

Handlebar - Controls
6
Parts Diagram
Parts Catalog
Electrical system
by
Front wheel
Handlebar - Controls
1
2
3
3
4
5
6
7
8
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
40
1
Handlebar, grey
AP8218147
Not Available
1
Handlebar, grey
AP8218110
Not Available
2
Shear rivet
AP8101630
Not Available
3
Pair handguards, white
AP8230717
Not Available
3
Handguard pair, black
AP8231813
Not Available
3
Pair handguards, violet
AP8231310
Not Available
3
Handguard pair, blue
AP8231998
Not Available
3
Pair handguards, white
AP8231096
Not Available
3
Handguard pair, blue
AP8231489
Not Available
4
Rearview mirror
AP8201391
Not Available
5
Commutator wiring
AP8212399
Not Available
6
Spacer
AP8121080
$3,70 Unit Price incl. VAT
7
Throttle+hand grip, blue
AP8218109
Not Available
8
Handgrip - pair
AP8118273
Not Available
9
Cable adjuster
AP8118162
Not Available
11
Clutch control complete
AP8218085
Not Available
12
Clutch lever
AP8218061
Not Available
13
Clutch control screw
AP8118242
Not Available
14
Clutch lever adjuster
AP8118104
$10,76 Unit Price incl. VAT
15
Clutch adjuster sleeve
AP8120271
Not Available
16
Throttle cable
AP8214079
Not Available
17
Clutch cable
AP8214080
Not Available
18
Tachometer cable
AP8214081
Not Available
19
Odometer cable
AP8214054
Not Available
20
Helmet lock
AP8101425
Not Available
21
LH lights sel. w/wiring
AP8212763
Not Available
22
Main switch - steering lock
AP8212342
$44,28 Unit Price incl. VAT
23
Tachometer
AP8212743
Not Available
23
Tachometer
AP8212270
Not Available
24
Speedometer
AP8212742
Not Available
24
Speedometer
AP8212271
Not Available
25
Gasket Tachometer
AP8212272
$1,81 Unit Price incl. VAT
26
Odometer gasket
AP8212273
$1,81 Unit Price incl. VAT
27
Dashboard panel, black
AP8230667
Not Available
28
Split pin
AP8201353
Not Available
29
Front master cilinder D12
AP8213155
Not Available
30
Front brake lever
AP8218074
Not Available
31
Lock kit
AP8201979
Not Available
32
U-bolt
AP8213078
$15,22 Unit Price incl. VAT
33
Bush
AP8220230
Not Available
34
Tank cover
AP8230240
Not Available
35
Gasket set pump d.12
AP8113454
Not Available
36
Rubber spacer *
AP8220228
$5,38 Unit Price incl. VAT
37
Rubber spacer
AP8120405
$5,38 Unit Price incl. VAT
40
Front brake switch+harness
AP8212196
$27,67 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
