1
Engine displacement
50
2
Model
RX
3
Year
1991
4
Trim
RX 3 - 5 MARCE
5
Parts Catalog
Rear wheel
6

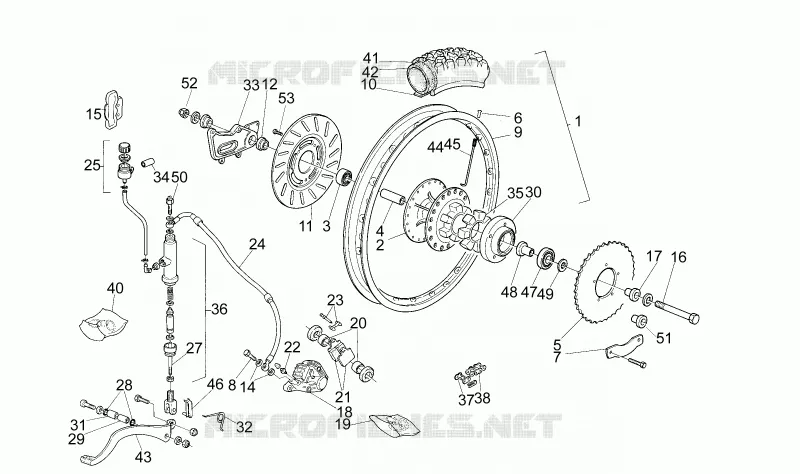

Parts Diagram
Parts Catalog
Drive shaft
by
Frame
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
32
33
34
35
36
37
38
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
Rear wheel, stainless steel
AP8208419
Not Available
1
Rear wheel
AP8208288
Not Available
2
Rear clutch
AP8225262
Not Available
2
Rear hub
AP8225238
Not Available
3
Bearing
AP8225123
$21,37 Unit Price incl. VAT
4
Spacer
AP8225249
Not Available
4
Spacer
AP8225313
$7,59 Unit Price incl. VAT
5
Chain ring Z=43
AP8207054
Not Available
5
Chain ring Z=45
AP8207044
Not Available
6
Nipples D3
AP8208410
$5,38 Unit Price incl. VAT
7
Lock plate
AP8234058
Not Available
8
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
9
Rear wheel, chrome 1,85x18"
AP8208221
Not Available
10
Wheel flap 18"
AP8209032
Not Available
11
Rear brake disc
AP8213274
Not Available
11
Rear brake disc, stainl. D220
AP8213268
$99,70 Unit Price incl. VAT
12
Spacer
AP8121088
Not Available
14
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
15
Brake master cyl.protection
AP8230575
Not Available
16
Rear wheel spindle
AP8225233
$18,01 Unit Price incl. VAT
17
Bush
AP8225247
Not Available
18
Rear brake caliper
AP8213081
Not Available
19
Brake caliper rev. kit
AP8213102
Not Available
20
Piston
AP8213103
Not Available
21
Pads pair
AP8213104
$73,58 Unit Price incl. VAT
22
Air bleed valve
AP8213108
$9,22 Unit Price incl. VAT
23
Rear pads pin
AP8213109
Not Available
24
Rear brake hose
AP8213159
Not Available
25
Oil tank
AP8213086
Not Available
27
Rear master cyl.rod
AP8113248
$0,33 Unit Price incl. VAT
27
Rear master cyl.rod
AP8221074
$6,15 Unit Price incl. VAT
28
O-ring 119
AP8220149
$3,65 Unit Price incl. VAT
29
Bush
AP8221010
Not Available
30
Crown holder
AP8232631
Not Available
31
Bushing
AP8221014
Not Available
32
Coil torsion spring *
AP8221100
$0,88 Unit Price incl. VAT
33
Brake hanger plate
AP8234064
Not Available
34
Headlight bush
AP8121718
$3,38 Unit Price incl. VAT
35
Flexible coupling rubber
AP8225248
Not Available
36
Rear master cylinder
AP8213117
Not Available
37
Connecting link
AP8207019
Not Available
38
Chain cpl conn.link
AP8207017
Not Available
40
Rear pump rev. kit
AP8113366
Not Available
41
Missing description
Not Available
42
Missing description
Not Available
43
Rear brake lever, black
AP8232500
Not Available
44
Spoke 3x192 80°
AP8208117
Not Available
45
Spoke 3x205
AP8208250
$1,01 Unit Price incl. VAT
45
Spoke 3x192 92°
AP8208118
$0,37 Unit Price incl. VAT
46
Gear selector fork clips
AP8113082
$3,70 Unit Price incl. VAT
47
Hub bearing D17x40x12
AP8110045
$9,18 Unit Price incl. VAT
48
Spacer
AP8225263
Not Available
49
Internal spacer
AP8225264
Not Available
50
Stop switch
AP8124479
$58,72 Unit Price incl. VAT
51
Bush
AP8225138
Not Available
52
Rear wheel spindle nut
AP8225208
$3,65 Unit Price incl. VAT
53
Hex socket screw M6x14
AP8152156
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
