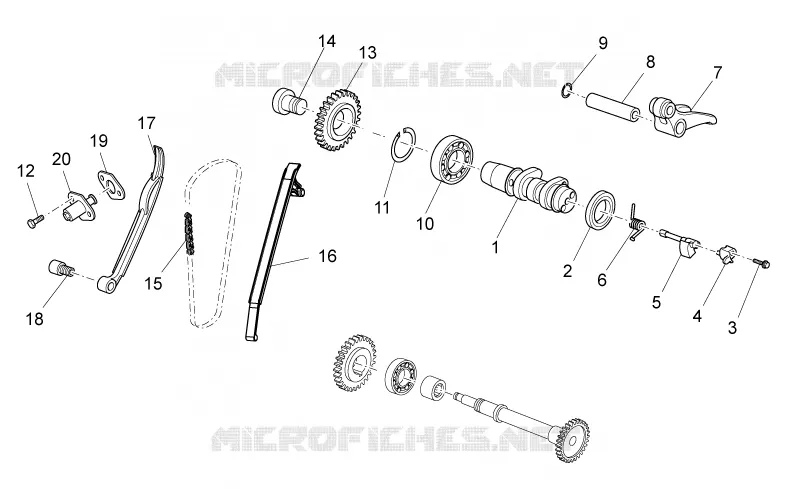

Rear cylinder timing system FOR RXV FROM 2011

Rear cylinder timing system

1

Camshaft cpl.

CM2377025

Not Available

2

Ball bearing D25x37x7

85104R

$13,37 Unit Price incl. VAT

3

Screw w/ flange M5x20

AP8152274

$0,08 Unit Price incl. VAT

4

Block

AP9150303

$22,29 Unit Price incl. VAT

5

Rear valve control

855508

Not Available

6

Spring

855516

$4,82 Unit Price incl. VAT

7

Rocker arm exhaust

AP9150096

Not Available

8

Rocker shaft

851468

$7,23 Unit Price incl. VAT

9

Snap ring

006612

$1,55 Unit Price incl. VAT

10

Ball bearing D25x42x9

85105R

$9,18 Unit Price incl. VAT

11

Circlip

006642

$3,65 Unit Price incl. VAT

12

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

13

Timing gear Z=22

AP9150506

$302,79 Unit Price incl. VAT

14

Special screw M16x1

855102

$8,01 Unit Price incl. VAT

15

Camshaft chain

AP9150327

$28,35 Unit Price incl. VAT

15

Camshaft chain

AP9150133

Not Available

16

Chain guide plate L186

AP9150300

$7,69 Unit Price incl. VAT

16

Chain guide plate L177

AP9150011

$7,69 Unit Price incl. VAT

17

Chain tensioner sliding block

AP9150012

Not Available

18

Screw M6x12

AP9150142

$3,65 Unit Price incl. VAT

19

Guarnizione cilindro/tendicatena

847928

$0,42 Unit Price incl. VAT

20

Complete chain tensioner

82650R

$34,52 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
