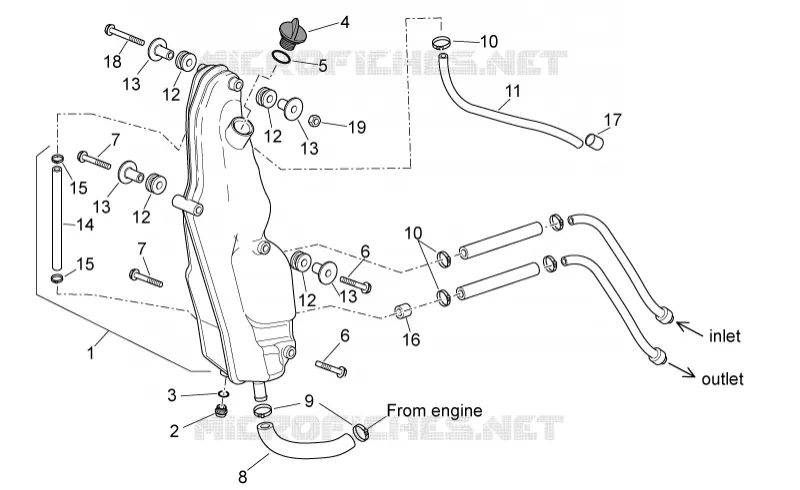

Oil tank II FOR RXV FROM 2011

Oil tank II

1

Oil tank

855686

Not Available

2

Oil unload plug

AP9150174

$3,65 Unit Price incl. VAT

3

Seal washer D12x18x1,5

AP9150349

Not Available

4

Oil plug M20x1,5

AP9150410

$5,38 Unit Price incl. VAT

5

O-ring

273754

$0,16 Unit Price incl. VAT

6

Screw w/ flange M6x25

AP8152280

$0,25 Unit Price incl. VAT

7

Screw w/ flange M6x35

AP8152282

$0,51 Unit Price incl. VAT

8

pipe Blow-By

AP9100496

$5,38 Unit Price incl. VAT

9

Hose clip D.15,5x6,6

AP8101586

$5,73 Unit Price incl. VAT

10

Hose clip D.15,5x6,6

AP8101586

$5,73 Unit Price incl. VAT

11

pipe 9x14

AP8120987

$10,76 Unit Price incl. VAT

12

Rubber spacer *

AP8120223

$0,95 Unit Price incl. VAT

13

Bush D14-D9-d6.5-H12

AP9100950

Not Available

14

Oil level pipe

AP9100665

Not Available

15

Hose clip

AP9100951

$5,20 Unit Price incl. VAT

16

Rubber pipe 12,8x8,8 L=28

AP9100267

Not Available

17

Cap

855766

$5,38 Unit Price incl. VAT

18

Screw w/ flange M6x1 L=95

AP9100661

$5,20 Unit Price incl. VAT

19

Self-locking nut M6x1

AP9100434

$29,76 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
