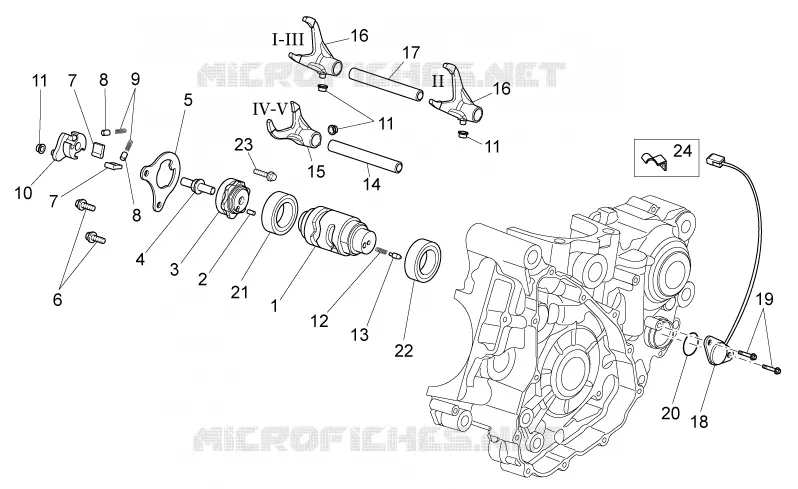

Gear box selector II FOR RXV FROM 2011

Gear box selector II

1

Shift cam cpl.

AP9150004

$88,08 Unit Price incl. VAT

2

Roller D4

AP9150375

$14,58 Unit Price incl. VAT

3

Selector drum

AP9150067

$47,20 Unit Price incl. VAT

4

Threaded pin M8x1,25

AP9150043

Not Available

5

Selector lock plate

AP9150073

$12,45 Unit Price incl. VAT

6

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

7

Lever

AP9150069

$7,23 Unit Price incl. VAT

8

Spring pillar

AP9150070

$10,76 Unit Price incl. VAT

9

Spring

AP9150064

$5,38 Unit Price incl. VAT

10

Shift cam plate

AP9150068

$86,99 Unit Price incl. VAT

11

Bushing D6x8x5

AP9150060

$6,60 Unit Price incl. VAT

12

Spring

855705

Not Available

13

Spring pillar

AP9150003

$14,30 Unit Price incl. VAT

14

Fork shaft L72,5

AP9150062

$56,11 Unit Price incl. VAT

15

Fork 4a-5a

AP9150093

Not Available

16

Fork 1a-3a

AP9150091

$53,34 Unit Price incl. VAT

17

Fork shaft L93

AP9150061

$57,79 Unit Price incl. VAT

18

Gearbox sensor

AP9150184

Not Available

19

Screw w/ flange M5x12

AP8152272

$0,08 Unit Price incl. VAT

20

O-ring D23,52x1,78

AP9150479

$5,38 Unit Price incl. VAT

21

Ball bearing D25x42x9

AP9150365

$32,40 Unit Price incl. VAT

22

Ball bearing D25x37x7

85104R

$13,37 Unit Price incl. VAT

23

Screw w/ flange M5x12

AP8152272

$0,08 Unit Price incl. VAT

24

Fairlead

AP9150462

$5,38 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
