Rear brake system FOR RXV FROM 2011

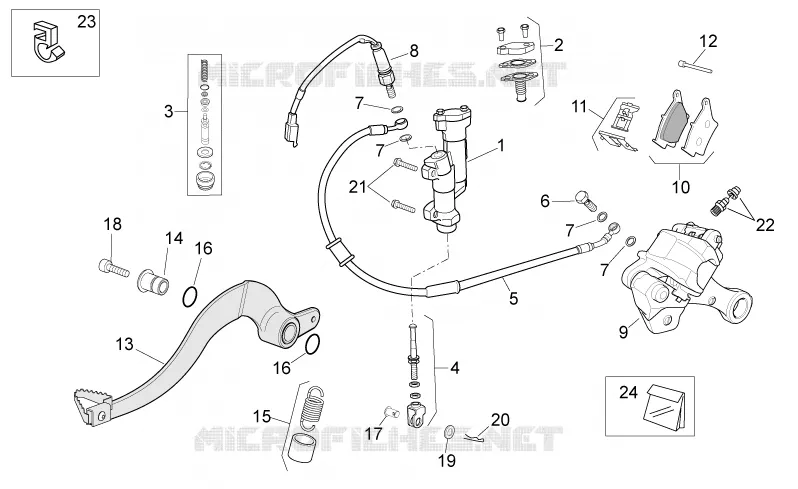

Rear brake system

1

Rear master cylinder

AP9100475

Not Available

2

Plug revision kit

AP9100794

Not Available

3

Piston, kit

AP9100793

Not Available

4

Lever overhaul kit

AP9100795

$38,43 Unit Price incl. VAT

5

Rear brake hose

855696

$37,57 Unit Price incl. VAT

6

Hex screw M10x1,25

AP9100472

$3,65 Unit Price incl. VAT

7

Washer 14x10,2x1

AP9100473

$5,38 Unit Price incl. VAT

8

Stop switch

AP9100417

Not Available

9

Rear brake caliper

855769

Not Available

10

Pads pair

855852

Not Available

11

Spring

855853

$8,91 Unit Price incl. VAT

12

Pin

855854

$15,74 Unit Price incl. VAT

13

Rear brake lever

855506

Not Available

14

Bush

AP9100290

Not Available

15

Spring

AP9100291

Not Available

16

O-ring 18x2

AP9100477

$3,65 Unit Price incl. VAT

17

Rear brake lever pin

AP9100354

$10,76 Unit Price incl. VAT

18

Hex socket screw M8x20

AP8150169

$3,70 Unit Price incl. VAT

19

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

20

Split pin

AP8101928

$0,08 Unit Price incl. VAT

21

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

22

Bleeder kit

AP9100789

Not Available

23

Spring

AP9100752

$5,38 Unit Price incl. VAT

24

Brake caliper rev. kit

855855

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
