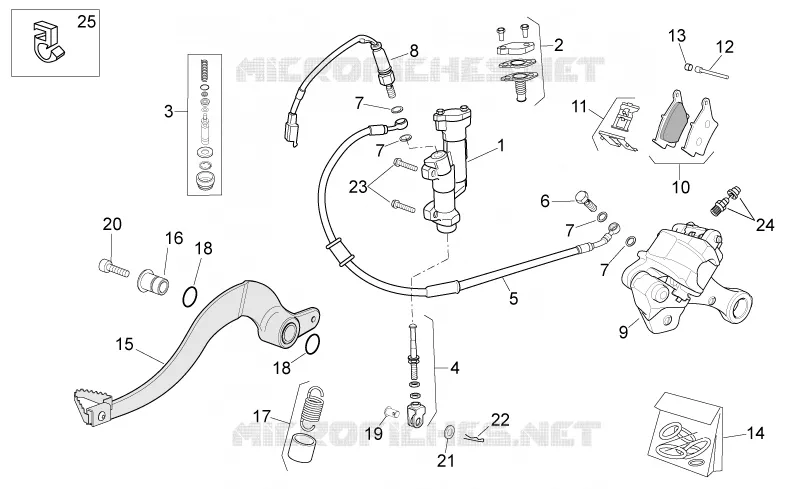

Rear brake system FOR SXV FROM 2010

Rear brake system

1

Rear master cylinder

AP9100475

Not Available

2

Plug revision kit

AP9100794

Not Available

3

Piston, kit

AP9100793

Not Available

4

Lever overhaul kit

AP9100795

$38,43 Unit Price incl. VAT

5

Rear brake hose

AP9100478

$56,11 Unit Price incl. VAT

6

Hex screw M10x1,25

AP9100472

$3,65 Unit Price incl. VAT

7

Washer 14x10,2x1

AP9100473

$5,38 Unit Price incl. VAT

8

Stop switch

AP9100417

Not Available

9

Rear brake caliper

AP9100479

Not Available

10

Pads pair

AP9100797

Not Available

11

Spring

AP9100798

$7,69 Unit Price incl. VAT

12

Pin with cotter

AP9100800

$11,69 Unit Price incl. VAT

13

Cover

AP9100799

$7,23 Unit Price incl. VAT

14

Brake caliper rev. kit

AP9100796

Not Available

15

Rear brake lever

855506

Not Available

16

Bush

AP9100290

Not Available

17

Spring

AP9100291

Not Available

18

O-ring 18x2

AP9100477

$3,65 Unit Price incl. VAT

19

Rear brake lever pin

AP9100354

$10,76 Unit Price incl. VAT

20

Hex socket screw M8x20

AP8150169

$3,70 Unit Price incl. VAT

21

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

22

Split pin

AP8101928

$0,08 Unit Price incl. VAT

23

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

24

Bleeder kit

AP9100789

Not Available

25

Spring

AP9100752

$5,38 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
