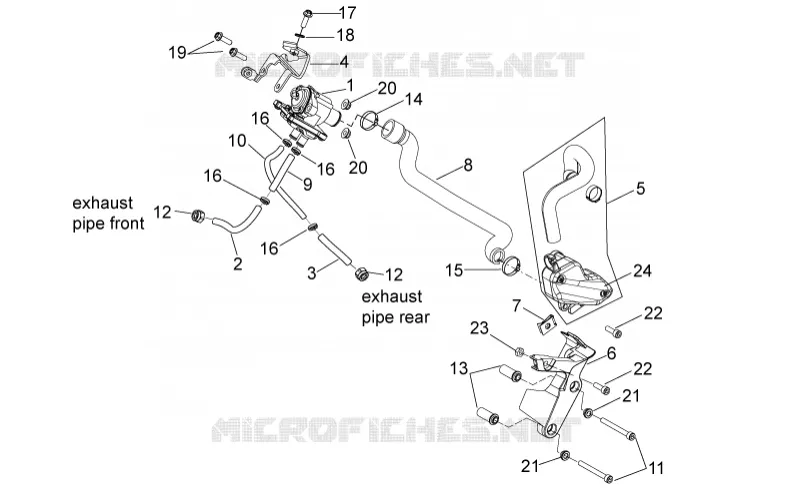

Secondary air FOR SXV FROM 2010

Secondary air

1

SAS valve

855054

$79,81 Unit Price incl. VAT

2

Front. Exhaust pipe

855023

Not Available

3

Rear exhaust pipe

855024

$28,78 Unit Price incl. VAT

4

Valve support

855022

$13,53 Unit Price incl. VAT

5

Sas box

855057

Not Available

6

Sas box support

855182

Not Available

7

Spring plate M6

254485

$0,34 Unit Price incl. VAT

8

pipe

855183

$25,05 Unit Price incl. VAT

9

Front. Exhaust pipe

855055

$3,83 Unit Price incl. VAT

10

Rear exhaust pipe

855056

$40,12 Unit Price incl. VAT

11

Hex socket screw

AP8150411

$3,65 Unit Price incl. VAT

12

Nut

855028

$6,60 Unit Price incl. VAT

13

Bush

855184

Not Available

14

Hose clip 26x8

AP9100456

$3,65 Unit Price incl. VAT

15

Hose clip

AP8102273

$3,78 Unit Price incl. VAT

16

Hose clip D.15,5x6,6

AP8101586

$5,73 Unit Price incl. VAT

17

Hex socket screw M6x16

AP8150137

$3,70 Unit Price incl. VAT

18

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

19

Screw w/ flange M6x20

AP8152279

$0,51 Unit Price incl. VAT

20

Self-locking nut M6x1

AP9100434

$29,76 Unit Price incl. VAT

21

Bush

AP8221129

$3,65 Unit Price incl. VAT

22

Hex socket screw M6x20

AP8150160

Not Available

23

Nut M6

AP8150026

$0,16 Unit Price incl. VAT

24

Valve cover sas

856897

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
