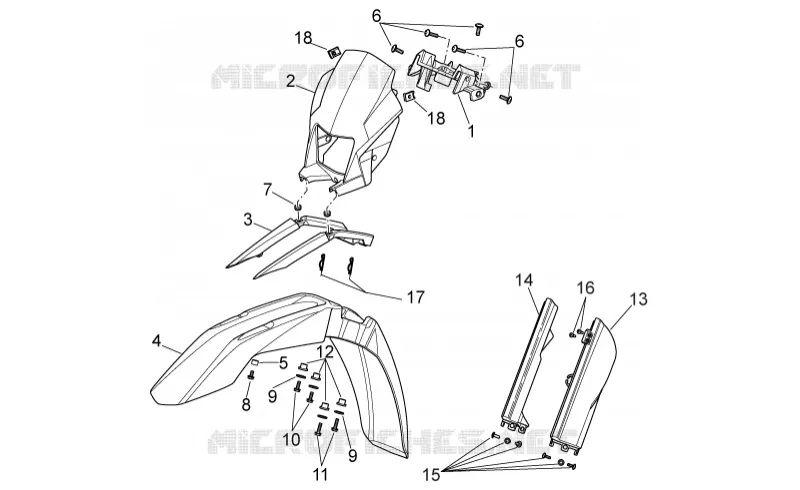

Front body I FOR SXV FROM 2010

Front body I

1

Socket support

AP9100517

$10,76 Unit Price incl. VAT

2

Windshield

89046800XN4

Not Available

3

Tie rod

858388

Not Available

4

Front mudguard, red

AP8156343

$117,28 Unit Price incl. VAT

4

Front mudguard, black

AP8156392

$117,28 Unit Price incl. VAT

5

Bush d.10-h.3,5

AP9100053

$1,70 Unit Price incl. VAT

6

Screw w/ flange M5x9

AP8152339

$3,65 Unit Price incl. VAT

7

Rubber spacer

AP8120405

$5,38 Unit Price incl. VAT

8

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

9

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

10

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

11

Screw w/ flange

AP8152283

$0,32 Unit Price incl. VAT

12

T bush 20x0,5x3,5

AP9100501

Not Available

13

LH sleeve guard, black

AP9100440

Not Available

14

RH sleeve guard, black

AP9100441

Not Available

15

Screw complete M6x1

AP9100548

$2,25 Unit Price incl. VAT

16

Screw

AP8150246

$3,65 Unit Price incl. VAT

17

Split pin *

AP8201431

$5,38 Unit Price incl. VAT

18

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
