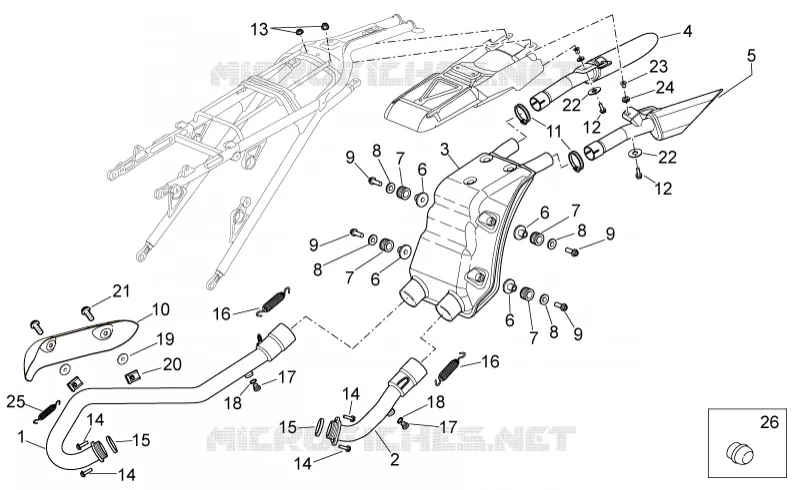

Exhaust unit FOR SXV FROM 2010

Exhaust unit

1

Front. Exhaust pipe

855036

$239,96 Unit Price incl. VAT

1

Front. Exhaust pipe

855037

Not Available

2

Rear exhaust pipe

891111

Not Available

2

Rear exhaust pipe

891110

Not Available

2

Rear exhaust pipe

855087

Not Available

2

Rear exhaust pipe

855026

Not Available

3

Silencer

856941

$626,82 Unit Price incl. VAT

4

RH terminal

AP9100244

$111,85 Unit Price incl. VAT

5

LH terminal

AP9100249

Not Available

6

Bush

AP9100409

$6,60 Unit Price incl. VAT

7

Silent-block

AP9100845

Not Available

8

Washer 8,3x20x1,5

AP9100736

$3,65 Unit Price incl. VAT

9

Screw w/ flange M8x30

AP8152288

$1,70 Unit Price incl. VAT

10

RH exhaust pipe shield

AP9100238

$29,51 Unit Price incl. VAT

11

Hose clamp D.30

851470

$8,01 Unit Price incl. VAT

12

Screw w/ flange M6x20

AP8152279

$0,51 Unit Price incl. VAT

13

Self-locking nut M6x1

AP9100434

$29,76 Unit Price incl. VAT

14

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

15

Exhaust pipe gasket

AP9100252

Not Available

16

Spring

AP8121170

$17,07 Unit Price incl. VAT

17

CO intake screw

AP9100755

$8,91 Unit Price incl. VAT

18

Washer 10x14x1

AP8119603

$3,65 Unit Price incl. VAT

19

Insulating washer

AP8120870

$3,65 Unit Price incl. VAT

20

Spring plate M6

254485

$0,34 Unit Price incl. VAT

21

Screw w/ flange M6x12

AP8152342

$9,41 Unit Price incl. VAT

22

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

23

T bush

AP9100302

$29,76 Unit Price incl. VAT

24

Rubber spacer

AP9100301

$5,00 Unit Price incl. VAT

25

Exhaust pipes spring

858142

Not Available

26

Ogive

858592

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
