1
Engine displacement
50
2
Model
AREA-51
3
Year
1999
4
Trim
Area 51
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Lights

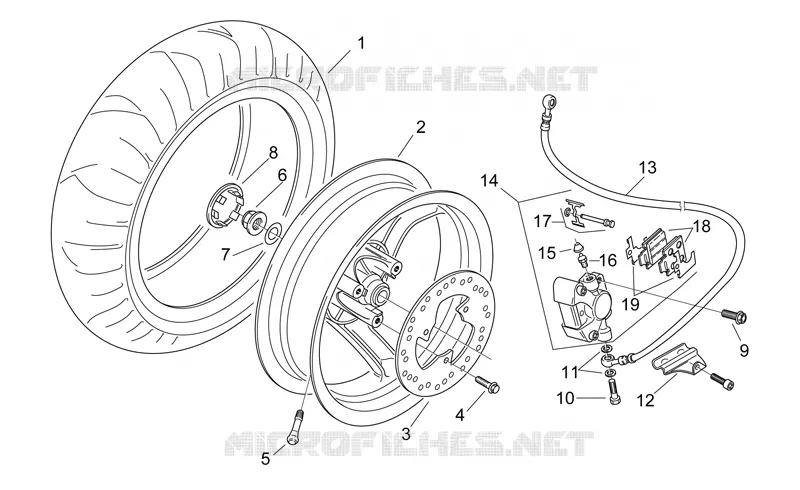

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Tyre
0000000
Not Available
2
Rear wheel
AP8208457
Not Available
3
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
4
screw
AP8208546
Not Available
5
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
6
DAX flange nut M14x1,5
AP8152244
$4,36 Unit Price incl. VAT
7
Spring washer 14,5x24
AP8150471
$3,70 Unit Price incl. VAT
8
Rear wheel plug
AP8220367
Not Available
9
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
10
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
11
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
12
Brake hose holder plate
AP8238852
$5,38 Unit Price incl. VAT
13
Rear brake hose
AP8213380
Not Available
14
Rear brake caliper, red D28
AP8213295
Not Available
15
Bleed valve cap
AP8113005
$5,38 Unit Price incl. VAT
16
Air bleed valve
AP8113006
$24,59 Unit Price incl. VAT
17
Pin+Brake spring
AP8213227
$63,02 Unit Price incl. VAT
18
Rear pads pair
AP8113663
$65,48 Unit Price incl. VAT
19
F.antiwhistle plate-pair
AP8113678
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
