1
Engine displacement
50
2
Model
AREA-51
3
Year
1999
4
Trim
Area 51
5
Parts Catalog
Controls
6

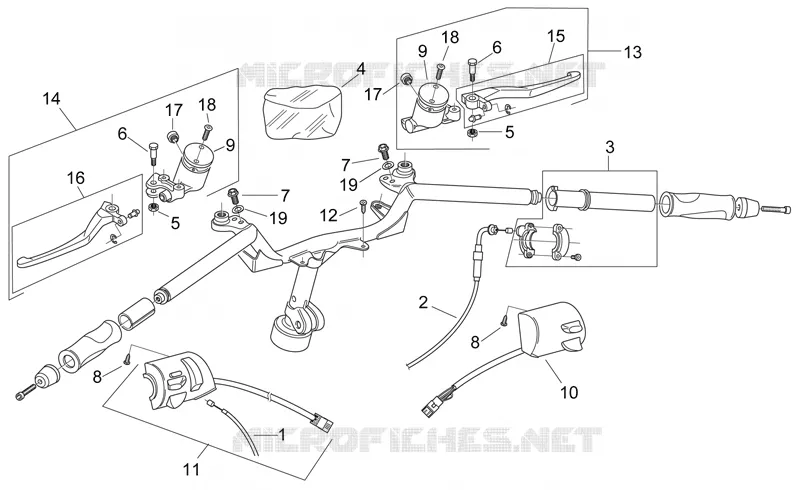

Parts Diagram
Parts Catalog
Handlebar - Dashboard
by
Water cooler
Controls
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
17
18
18
19
19
1
Choke cable
AP8214175
Not Available
2
Throttle cable
AP8214176
Not Available
3
Throttle w/out hand grip
AP8218411
$52,65 Unit Price incl. VAT
4
Pump revision kit
AP8213399
Not Available
5
Nut
AP8213298
$3,65 Unit Price incl. VAT
6
Lever screw
AP8125757
$6,60 Unit Price incl. VAT
7
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
8
Self-tapping screw
AP8150444
$0,17 Unit Price incl. VAT
9
Pump cover
AP8213401
Not Available
10
RH lights sel. w/wiring
AP8212914
Not Available
10
RH lights sel. w/wiring
AP8224058
Not Available
10
RH lights sel. w/wiring
AP8224059
Not Available
11
LH lights sel. w/wiring
AP8212915
Not Available
11
LH lights sel. w/wiring
AP8224060
Not Available
12
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
13
Front master cilinder
AP8213289
Not Available
14
Rear master cylinder
AP8213294
Not Available
15
Front brake lever
AP8213402
Not Available
16
Rear brake lever
AP8213398
Not Available
17
Master cyl.level window
AP8113414
Not Available
18
Pump cover screw
AP8213400
$3,65 Unit Price incl. VAT
19
Washer 6,6x18*
AP8150179
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
