1
Engine displacement
50
2
Model
AREA-51
3
Year
1999
4
Trim
Area 51
5
Parts Catalog

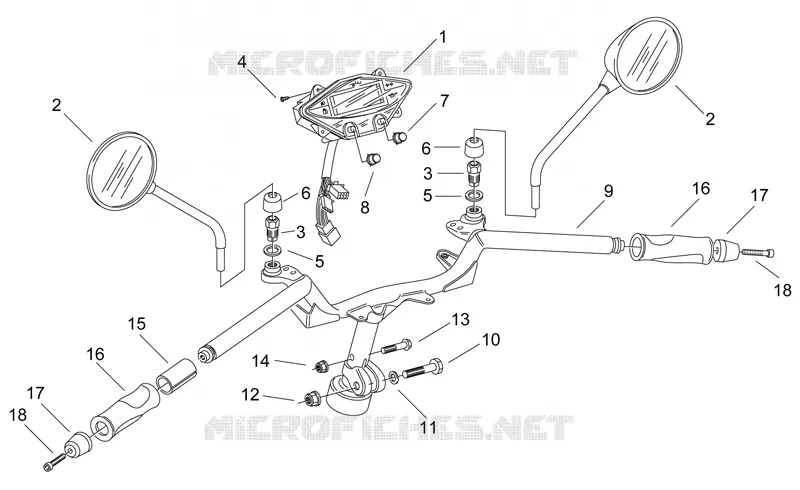

Handlebar - Dashboard
6
Parts Diagram
Parts Catalog
Number plate holder
by
Controls
Handlebar - Dashboard
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
1
Digital dashboard
AP8212996
Not Available
1
Digital dashboard
AP8212963
Not Available
1
Digital dashboard
AP8224048
Not Available
1
Digital dashboard
AP8212995
Not Available
1
Digital dashboard
AP8212997
Not Available
2
RH/LH rearview mirror
AP8202025
Not Available
3
Nut with caliper
AP8221256
Not Available
4
Self-tap screw 2,9x12
AP8150421
$3,70 Unit Price incl. VAT
5
Mirror connecting washer
AP8221279
Not Available
6
RH/LH mirror rubber
AP8220484
Not Available
7
'MODE' dashboard button
AP8224087
Not Available
8
'SET' dashboard button
AP8224086
Not Available
9
Handlebar w phor ctng.
AP8218320
Not Available
10
Screw
AP8150323
$3,65 Unit Price incl. VAT
11
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
12
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
13
Screw w/ flange M8x40
AP8152290
$3,65 Unit Price incl. VAT
14
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
15
LH light selector protection
AP8248105
Not Available
16
Handgrip pair, black/grey
AP8218412
Not Available
17
H.bars anti.v weight
AP8102717
$7,35 Unit Price incl. VAT
18
Hex socket screw M6x35
AP8150285
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
