1
Engine displacement
50
2
Model
AREA-51
3
Year
1999
4
Trim
Area 51
5
Parts Catalog
Central body II
6

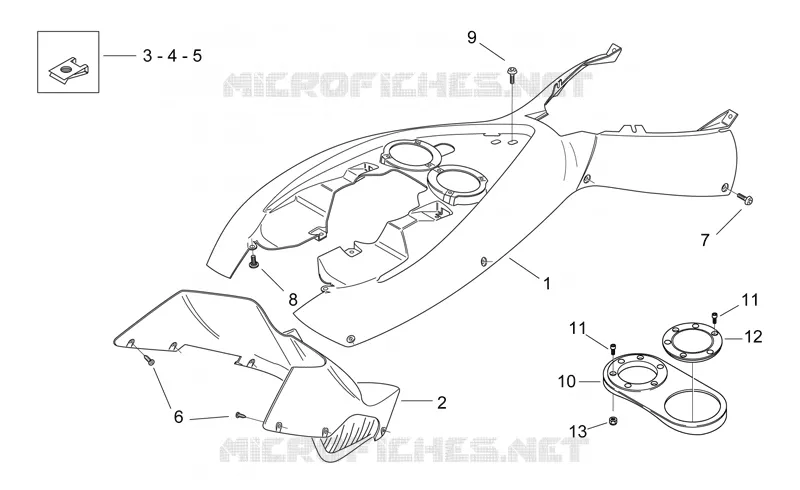

Parts Diagram
Parts Catalog
Central body I
by
Central body III
Central body II
1
2
3
4
5
6
7
8
9
10
11
11
12
13
1
Up.tunnel lockup, black
AP8249357
Not Available
1
Up.tunnel lockup, blue
AP8239159
Not Available
2
Front splash guard, black
AP8239155
Not Available
3
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
4
Clip M6
AP8102376
Not Available
5
Clip M4
AP8102381
$1,09 Unit Price incl. VAT
6
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
7
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
8
Screw w/ flange M5x9
AP8152339
$3,65 Unit Price incl. VAT
9
Screw w/ flange
AP8152338
$3,65 Unit Price incl. VAT
10
Tank plug flange, cyan
AP8239428
Not Available
10
Tank plug flange, black
AP8249355
Not Available
11
Hex socket screw
AP8150416
$3,65 Unit Price incl. VAT
12
Fuel sens. cover, cyan
AP8239429
Not Available
12
Fuel sens. cover, black
AP8249356
Not Available
13
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
