Engine displacement
125
2
Model
ATLANTIC
3
Year
2007
4
Trim
Atlantic
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Oil filter
by
Oil pump
Clutch
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Roller cage 20x29x18
AP8110104
Not Available
2
Snap ring
AP8580068
Not Available
3
Bearing 17x30x7
AP8125893
Not Available
4
Sec. fixed sheave, complete
AP8580208
Not Available
4
Sec. fixed sheave, complete
AP8575013
Not Available
5
Guide pin L=12,5
AP8580166
Not Available
6
Sec. sliding sheave, complete
AP8580139
Not Available
6
Sec. sliding sheave, complete
AP8577055
Not Available
7
Gasket ring
AP8550124
$4,82 Unit Price incl. VAT
8
Gasket
AP8550116
Not Available
9
Cup
AP8580211
Not Available
9
Cup
AP8550115
$20,41 Unit Price incl. VAT
10
Variator spring
AP8580119
Not Available
10
Variator spring
AP8580210
Not Available
11
Cup
AP8550114
Not Available
12
Centrifugal clutch assy
AP8580171
Not Available
12
Centrifugal clutch assy
AP8577092
Not Available
13
Ring nut
AP8550111
Not Available
14
Clutch drum
AP8577095
Not Available
15
Secondary pulley
AP8176339
Not Available
15
Secondary pulley
AP8176300
Not Available
16
Nut
AP8580095
Not Available
17
Damper drift
AP8176091
Not Available
18
Washer
AP8580062
Not Available
19
Gasket
AP8550116
Not Available
19
Gasket
AP8577056
Not Available

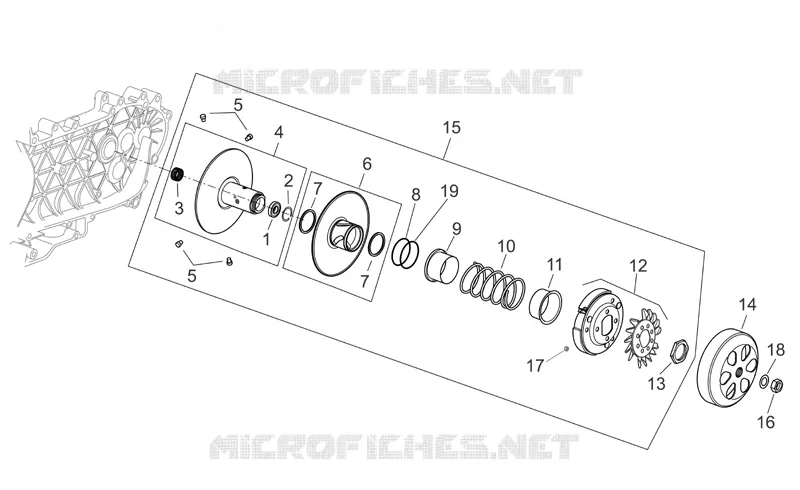

Find the detailed Clutch APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
