1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2007
4
Trim
Atlantic
5
Parts Catalog
Saddle
6
Parts Diagram
Parts Catalog
Undersaddle
by
Rear body I
Saddle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Pl.fix.selle pass.
AP8102947
$15,98 Unit Price incl. VAT
2
Saddle
AP8129451
Not Available
2
Saddle, black/grey
AP8129489
Not Available
3
Caoutchouc avant selle;
AP8144089
$5,38 Unit Price incl. VAT
4
Gasket
AP8163229
Not Available
5
Lock cable
AP8104422
$14,30 Unit Price incl. VAT
6
Seat cushion
AP8570123
Not Available
7
Charnière selle;
AP8158362
$34,73 Unit Price incl. VAT
8
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
9
Pivot charnière selle;
AP8121599
$6,60 Unit Price incl. VAT
10
Rondelle
AP8150014
$3,70 Unit Price incl. VAT
11
Goupille
AP8201431
$5,38 Unit Price incl. VAT
12
Serrure selle
AP8104611
$31,21 Unit Price incl. VAT
13
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
14
Crochet câble porte-casque
AP8221206
$5,38 Unit Price incl. VAT
15
Câble accrochage casque
AP8114458
$7,70 Unit Price incl. VAT
16
Couvercle selle
AP8168707
$61,48 Unit Price incl. VAT

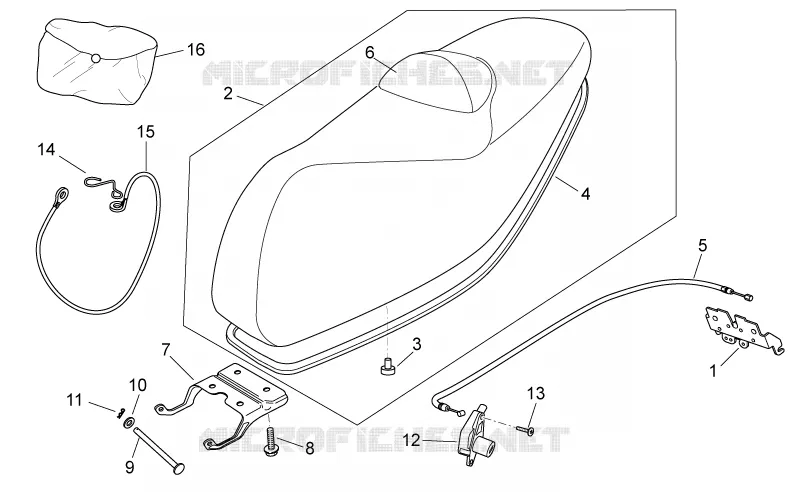

Find the detailed Saddle APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
