Engine displacement
125
2
Model
ATLANTIC
3
Year
2007
4
Trim
Atlantic
5
Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Carburettor I
by
Carburettor III
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Idle jet 35
AP8580266
Not Available
2
Main jet 98
AP8176305
Not Available
3
Adj.min.eng.speed air screw
AP8580227
Not Available
4
Conical pin
AP8580268
Not Available
5
Valve gas return spring
AP8580269
Not Available
6
Float chamber kit
AP8577075
Not Available
7
Starter cover
AP8551065
Not Available
8
Spring
AP8580030
Not Available
9
screw
AP8580016
Not Available
10
screw
AP8580017
Not Available
11
Fuel closing needle
AP8551112
Not Available
12
Diaphragm
AP8575049
Not Available
13
Float kit
AP8575050
Not Available
14
Cover
AP8577079
Not Available
15
Spring
AP8580021
Not Available
16
Cup
AP8580022
$29,70 Unit Price incl. VAT
17
Washer
AP8580023
$8,01 Unit Price incl. VAT
18
Circlip
AP8580024
Not Available
19
Spring
AP8580028
Not Available
20
Washer
AP8580029
Not Available
21
Automatic starter cpl.
AP8580270
Not Available
22
Acceleration pump kit
AP8577076
Not Available
23
Plate
AP8551064
Not Available
24
screw
AP8560009
Not Available

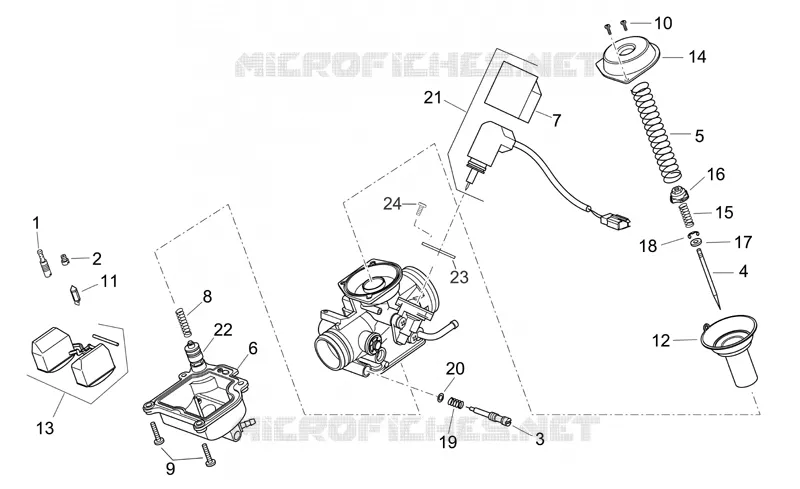

Find the detailed Carburettor II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
