1
Engine displacement
1000
2
Model
RSV
3
Year
2008
4
Trim
RSV 1000
5
Parts Catalog

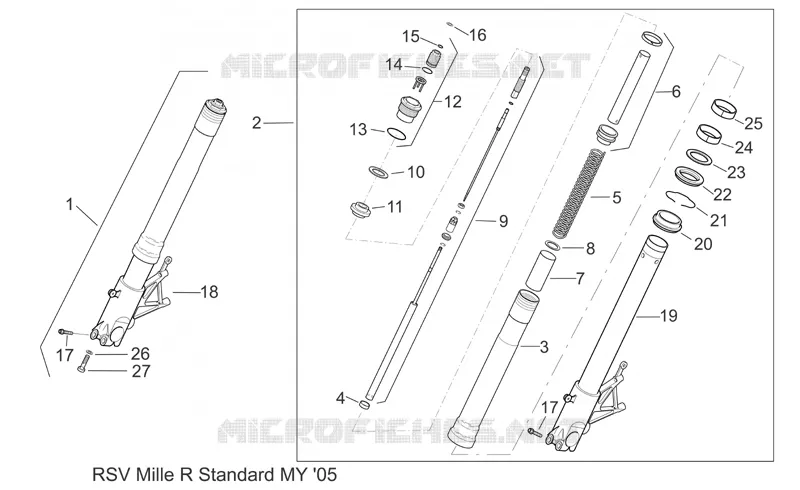

Front fork III
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Front body - Front fairing
Front fork III
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
RH radial sleeve
AP8163451
Not Available
2
LH radial sleeve
AP8163452
Not Available
3
Sleeve
AP8163494
Not Available
4
Plunger attachment bush
AP8123810
$5,20 Unit Price incl. VAT
5
Spring
AP8163495
$24,90 Unit Price incl. VAT
6
Preload tube cpl.
AP8123832
$70,25 Unit Price incl. VAT
7
Spacer
AP8123835
$8,01 Unit Price incl. VAT
8
Washer
AP8123836
$5,38 Unit Price incl. VAT
9
Plunger, complete
AP8163496
Not Available
10
Washer
AP8123816
$3,65 Unit Price incl. VAT
11
Ring
AP8123815
$8,01 Unit Price incl. VAT
12
Sleeve plug cpl.
AP8123817
$244,99 Unit Price incl. VAT
13
O-ring
AP8123834
$3,65 Unit Price incl. VAT
14
O-ring
AP8123819
$3,65 Unit Price incl. VAT
15
O-ring
AP8123820
$3,65 Unit Price incl. VAT
16
Stop ring
AP8123821
$3,65 Unit Price incl. VAT
17
Screw w/ flange M8x40
AP8152290
$3,65 Unit Price incl. VAT
18
Hub+RH fork leg
AP8163492
$494,60 Unit Price incl. VAT
19
Hub+LH fork leg
AP8163493
$494,60 Unit Price incl. VAT
20
Dust cover
AP8123824
$8,65 Unit Price incl. VAT
21
Circlip
AP8123806
Not Available
22
Oil seal
AP8123825
$8,65 Unit Price incl. VAT
23
Ring
AP8123826
Not Available
24
Bush D.47,1xd.43xh.20
AP8123827
Not Available
25
Bush D.44,5xd.41,1xh.20
AP8123828
Not Available
26
Special washer
AP8123811
$3,65 Unit Price incl. VAT
27
screw M10x1,5
AP8123812
$6,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
