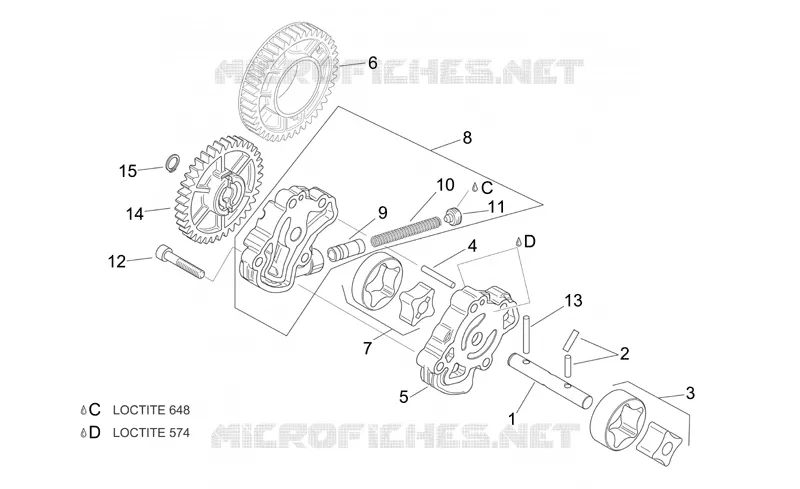

Oil pump FOR RSV 1000 FROM 2008

Oil pump

1

Oil pump shaft assy.

AP0220423

Not Available

2

Pin 4x15,8

AP0232730

Not Available

3

Internal and external rotor

AP0256680

$216,72 Unit Price incl. VAT

4

Pin 4x25,8

AP0232970

$4,82 Unit Price incl. VAT

5

Oil pressing pump casing

AP0211620

Not Available

6

Oil pump gear z=42

AP0634475

Not Available

7

Internal and external rotor

AP0956275

Not Available

8

Oil pump cover cpl.

AP0211632

Not Available

9

Pressure adj. piston

AP0256510

$37,57 Unit Price incl. VAT

10

Spring

AP0239449

Not Available

11

Valve closer screw m12x1,5

AP0241650

Not Available

12

Hex socket screw M6x45

AP0241821

Not Available

13

Pin

AP0232430

Not Available

14

Oil pump gear

AP0634483

Not Available

15

Circlip 10x1

AP0245330

$3,65 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
