1
Engine displacement
1000
2
Model
RSV
3
Year
2008
4
Trim
RSV 1000
5
Parts Catalog
Valves cover
6

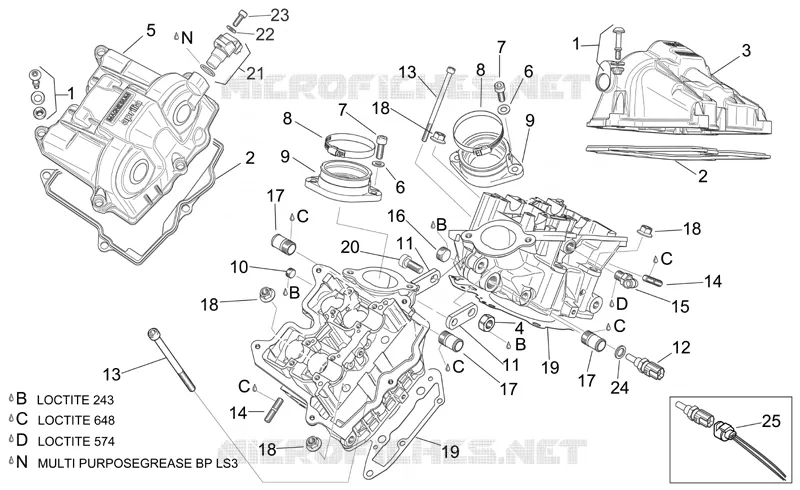

Parts Diagram
Parts Catalog
Exhaust pipe
by
Cylinder head and valves
Valves cover
25
24
23
22
21
20
19
19
18
18
18
18
17
17
17
10
9
9
8
8
7
7
6
6
5
4
3
2
2
1
1
16
15
14
14
13
13
12
11
11
1
Spacer screw cpl.
AP0241625
Not Available
2
Valve cover gasket
AP0650345
Not Available
3
Rear valves cover
AP0610715
Not Available
4
Nut
AP0242091
Not Available
5
Front valves cover
AP0610710
Not Available
6
Washer 8,4
AP0250311
Not Available
7
Hex socket screw M8x25
AP0240081
Not Available
8
Hose clamp 65
AP0251830
Not Available
9
Intake flange
AP0267150
Not Available
10
Cover
AP0840657
Not Available
11
Plate
AP0251100
Not Available
12
Temp. Sensor
AP0222425
Not Available
12
Temp. Sensor
AP0274040
Not Available
13
Hex socket screw
AP0241601
Not Available
14
Stud bolt
AP0440130
Not Available
15
Angular union
AP0922245
Not Available
16
Cover m18x1,5
AP0240170
Not Available
17
pipe
AP0224090
Not Available
18
Nut
AP0242851
$3,65 Unit Price incl. VAT
19
Cylinder head gasket
AP0650210
$85,33 Unit Price incl. VAT
20
Hex socket screw M10x40
AP0640581
$3,65 Unit Price incl. VAT
21
Camshaft sensor cpl.
AP0664040
Not Available
22
Washer 6,4
AP0244211
Not Available
23
Hex socket screw M6x16
AP0241236
$3,65 Unit Price incl. VAT
24
Gasket ring 12x18
AP0250640
Not Available
25
Wiring with connector
AP8127776
$112,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
