1
Engine displacement
1000
2
Model
RSV
3
Year
2008
4
Trim
RSV 1000
5
Parts Catalog
Gear box selector
6

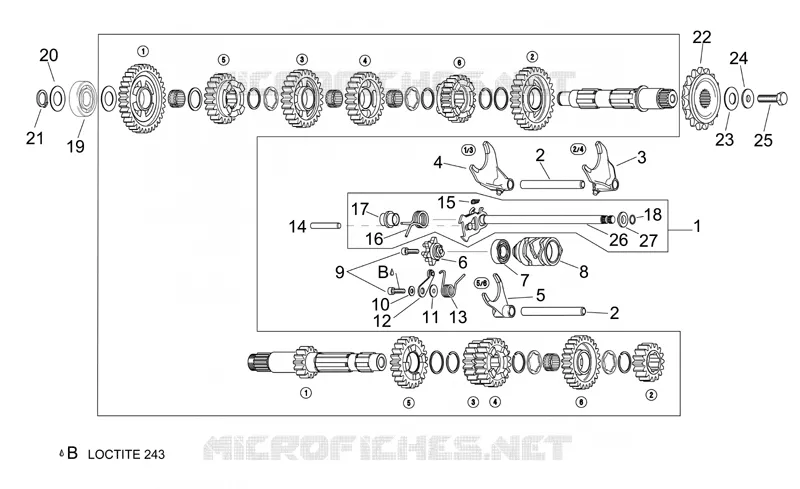

Parts Diagram
Parts Catalog
Rear master cylinder
by
Handlebar - Controls
Gear box selector
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
2
3
27
26
25
24
23
21
22
2
1
1
Gear shaft+spring cpl.
AP0620235
Not Available
2
Fork shaft
AP0258380
Not Available
3
Fork
AP0258361
Not Available
4
Fork
AP0258351
Not Available
5
Fork
AP0258376
Not Available
6
Index washer
AP0258310
Not Available
7
Ball bearing 16101
AP0932335
Not Available
8
Shift cam
AP0258328
Not Available
9
Hex socket screw
AP0241932
Not Available
10
Washer 6,4
AP0244211
Not Available
11
Washer
AP0227716
Not Available
12
Index assy. lever
AP0248375
Not Available
13
Index spring
AP0239247
$21,87 Unit Price incl. VAT
14
Pin
AP0229385
Not Available
15
Spring
AP0239430
$4,82 Unit Price incl. VAT
16
Pin spring
AP0239422
$9,50 Unit Price incl. VAT
17
Bush
AP0247940
$3,65 Unit Price incl. VAT
18
Circlip
AP0245440
$3,65 Unit Price incl. VAT
19
Ball bearing 6304
AP0832144
Not Available
20
Washer 20,2x27,5
AP0227442
Not Available
21
Circlip 20x1,75
AP0945665
$4,82 Unit Price incl. VAT
22
Rubbered pinion
AP0236365
Not Available
23
Spring washer 34x16,3
AP0239450
Not Available
24
Washer
AP0627210
Not Available
25
Hex screw
AP0940741
Not Available
26
Gear shaft+spring cpl.
AP0620235
Not Available
27
Washer
AP0227714
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
