Engine displacement
250
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Transmission
by
Variator
Clutch
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
1
Clutch drum
AP8122453
Not Available
2
Flanged nut
AP8122529
Not Available
3
Ecrou;
AP8122527
$11,34 Unit Price incl. VAT
4
Centrifugal clutch assy
AP8122452
Not Available
5
Compression spring
AP8122622
Not Available
6
Spring seat
AP8122607
Not Available
7
O-ring
AP8122554
Not Available
8
Oil seal
AP8122534
Not Available
9
Circlip
AP8122440
Not Available
10
Clutch shoe spring
AP8122620
Not Available
11
Sec.sliding sheave
AP8122610
Not Available
12
Pin
AP8122562
Not Available
13
Sec. fixed sheave
AP8122609
Not Available

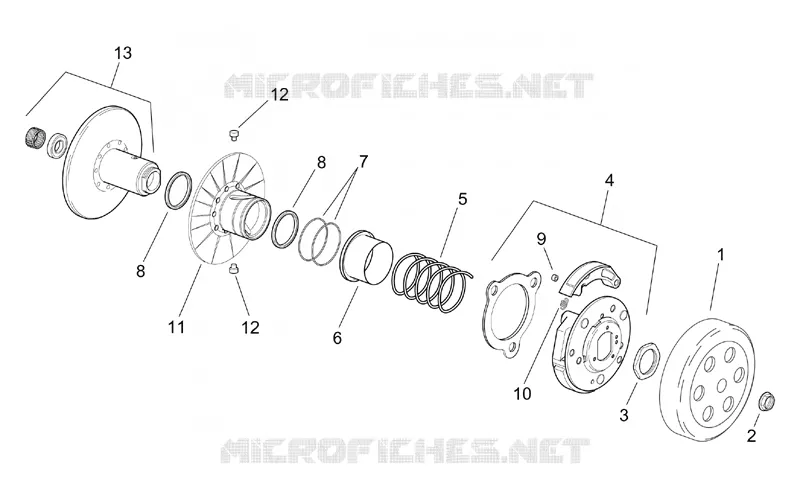

Find the detailed Clutch APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
