1
Engine displacement
250
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Fuel tank
by
Exhaust unit
Air box
1
2
3
4
5
6
7
8
9
9
9
10
10
10
10
10
11
11
11
12
13
14
15
1
Filter housing cover
AP8149643
Not Available
1
Filter housing cover
AP8139313
Not Available
2
Base corps filtre;
AP8139312
$43,65 Unit Price incl. VAT
2
Filter housing base
AP8149642
Not Available
3
Intake cover
AP8139482
Not Available
3
Couvercle aspiration;
AP8149641
$3,39 Unit Price incl. VAT
4
Filtre air
AP8102860
$3,71 Unit Price incl. VAT
5
Grille couv. Filtre;
AP8139314
$4,82 Unit Price incl. VAT
6
Intake hose
AP8144137
Not Available
7
Carburettor flange
AP8144138
Not Available
8
Intake cover gasket
AP8144150
Not Available
9
Rivet en plastique;
AP8220471
$5,38 Unit Price incl. VAT
10
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
11
Silentbloc
AP8101372
$4,62 Unit Price incl. VAT
12
Douille
AP8121766
$2,14 Unit Price incl. VAT
13
Vis bride
AP8152283
$0,32 Unit Price incl. VAT
14
Rondelle
AP8150015
$0,16 Unit Price incl. VAT
15
Joint
AP8144245
$5,38 Unit Price incl. VAT

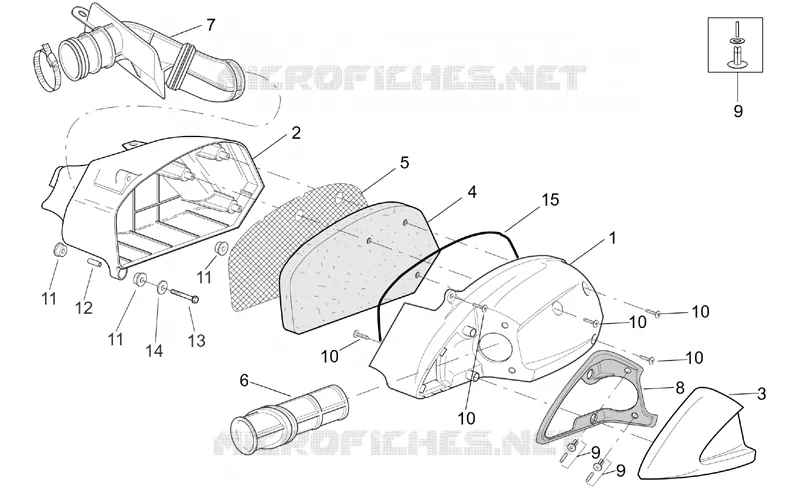

Find the detailed Air box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
