Engine displacement
250
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Starter motor
6
Parts Diagram
Parts Catalog
Magneto - Starting gear
by
Transmission
Starter motor
1
2
3
4
4
5
5
6
7
1
Starter motor cpl.
AP8122628
Not Available
2
Brush holder cpl.
AP8122429
Not Available
3
Wire
AP8122457
Not Available
4
screw
AP8122400
Not Available
5
O-ring
AP8122546
Not Available
6
O-ring
AP8122541
Not Available
7
Screw w/ flange
AP8122412
Not Available

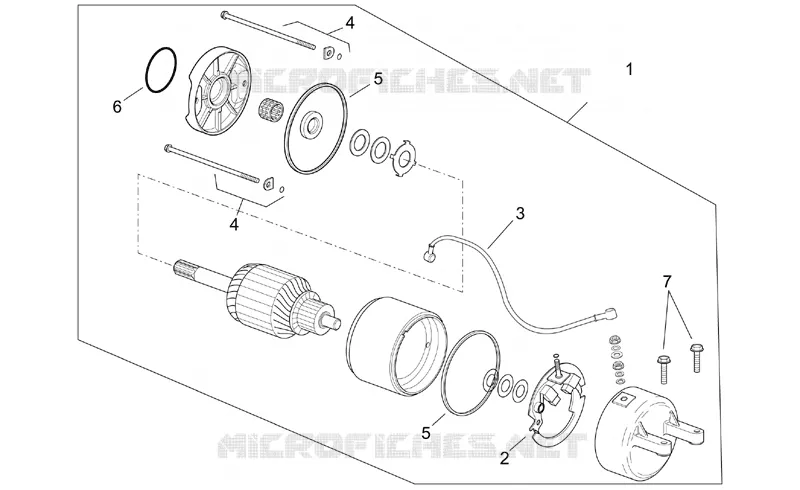

Find the detailed Starter motor APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
