Engine displacement
250
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Valves
6
Parts Diagram
Parts Catalog
Drive shaft - Cylinder - Piston
by
Valve control
Valves
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
14
14
1
Intake valve
AP8122638
Not Available
2
Exhaust valve
AP8122637
Not Available
3
Valve spring retainer
AP8122608
Not Available
4
Int. valve spring
AP8122623
Not Available
5
Ext. valve spring
AP8122624
Not Available
6
Valve stem seal 6x12X9
AP8122606
Not Available
7
Valve spring retainer
AP8122590
Not Available
8
Valve half-cone
AP8122458
Not Available
9
Rocker arm assy.
AP8106681
Not Available
10
Ex.valve rocker arm rod pin
AP8122613
Not Available
11
Int.valve rocker arm rod pin
AP8122614
Not Available
12
O-ring
AP8122550
Not Available
13
Valve adjuster screw
AP8122603
Not Available
14
Nut M6x0,75 Ch=10
AP8122528
Not Available

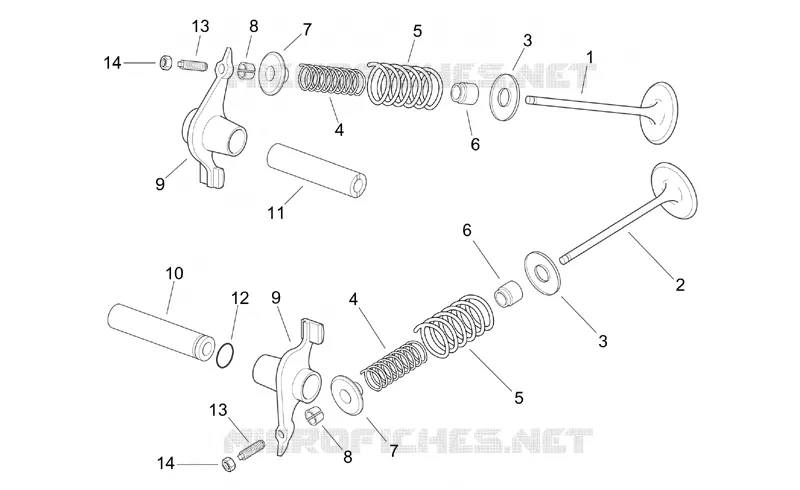

Find the detailed Valves APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
