1
Engine displacement
125
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo ST
5
Parts Catalog

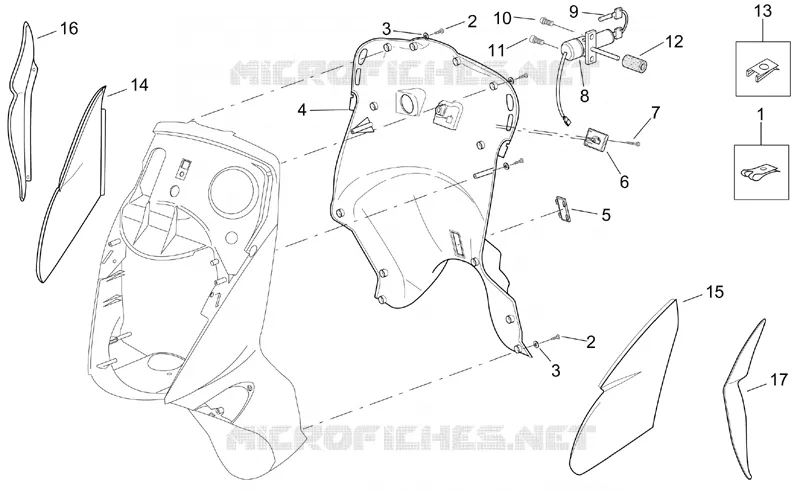

Front body - Internal shield
6
Parts Diagram
Parts Catalog
Front body - Shield
by
Central body - Mats
Front body - Internal shield
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Screw clip D4,2
AP8102782
Not Available
2
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
3
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
4
Internal shield, grey
AP8158316
$21,79 Unit Price incl. VAT
5
Type appr.data cover, grey
AP8149605
Not Available
6
Undersaddle hook cpl.
AP8201534
$10,00 Unit Price incl. VAT
7
Screw 4,2x25*
AP8150423
$3,65 Unit Price incl. VAT
8
Main switch - steering lock
AP8102924
Not Available
9
Aprilia milled key
AP8102221
Not Available
10
Shear rivet M6x17
AP8152140
$3,65 Unit Price incl. VAT
11
Hex socket screw M6x16
AP8150137
$3,70 Unit Price incl. VAT
12
pipe
AP8144043
Not Available
13
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
14
RH side panel, blue
AP8158520
Not Available
14
RH side panel, black
AP8168776
Not Available
14
RH side panel, black
AP8158640
Not Available
14
RH side panel, red
AP8158694
Not Available
14
RH side panel, blue
AP8178290
Not Available
14
RH side panel, grey
AP8168653
Not Available
14
RH side panel, blue
AP8178303
Not Available
14
RH side panel, red
AP8168671
Not Available
14
RH side panel, grey
AP8158324
Not Available
15
LH side panel, red
AP8158695
Not Available
15
LH side panel, grey
AP8168654
Not Available
15
LH side panel, black
AP8168777
Not Available
15
LH side panel, black
AP8158641
Not Available
15
LH side panel, blue
AP8178304
Not Available
15
LH side panel, red
AP8168672
Not Available
15
LH side panel, blue
AP8158521
Not Available
15
LH side panel, blue
AP8178291
Not Available
15
LH side panel, grey
AP8158323
Not Available
16
RH bumper
AP8168663
$2,79 Unit Price incl. VAT
16
RH bumper
AP8158325
$2,79 Unit Price incl. VAT
17
LH bumper
AP8168664
$2,79 Unit Price incl. VAT
17
LH bumper
AP8158326
$2,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
